A screen can make or break a separation system. The wrong choice may cause clogging, overflow, and extra labor. A rotary drum screen and a static screen both remove solids, but they work differently. In this article, you will learn how to compare them for real solids separation needs.
● A rotary drum screen is often better for continuous flow, higher solids loading, and systems that need automated cleaning.
● A static screen is often better for simple gravity separation, lower energy use, and easier mechanical maintenance.
● The screen surface matters as much as the equipment type. Wedge wire, perforated screen, and flat metal screen structures all affect flow, clogging, and separation accuracy.
● Wedge wire screen media can support stable liquid-solid separation because it uses continuous slot openings and a strong support structure.
● Static sieve bend screens can work well for dewatering, wastewater pretreatment, fiber separation, and other gravity-assisted processes.
● The best choice depends on flow rate, solids type, slot size, available space, cleaning method, and long-term operating cost.
Many buyers start by asking, “Which screen is better?” A better first question is, “What problem must the screen solve?” Solids separation is not only about removing visible particles. It also affects pumps, tanks, filters, pipes, and downstream treatment steps.
A wastewater line may carry fibers, food residue, sand, sludge, grease, or process debris. These solids do not behave the same way. Fibers can wrap around equipment. Grease can blind the screen surface. Fine particles may pass through large openings. Heavy grit can cause wear. Sticky solids may form a mat and reduce flow.
If the screen is undersized or poorly matched, the system can fail slowly. Flow drops. Operators clean it more often. Downstream equipment receives more solids than planned. Pumps may wear faster. Tanks may collect extra sludge. The treatment process becomes less stable.
This is why the choice between a rotary drum screen and a static screen should be based on operating conditions. Flow rate, solids loading, screen opening, material, cleaning access, and duty cycle all matter. A simple plant may not need a rotating unit. A busy process line may need it to maintain steady operation.
Note：Always check peak flow, not only average flow, because short overload periods often cause screen failure.
A rotary drum screen uses a rotating cylindrical screening surface. Liquid enters or flows across the drum, while solids are retained on the screen surface. As the drum turns, solids move away from the active screening zone. Many systems also use spray cleaning to keep openings clear.
A static screen does not rotate. It normally relies on gravity, flow direction, screen angle, and surface geometry. The liquid passes through the screen openings, while solids slide, collect, or move down the screen surface. A sieve bend screen is one common static option. It uses a curved screen surface to help separate and dewater solids.
The biggest difference is movement. A rotary drum screen creates mechanical movement. This helps carry solids away and supports continuous separation. A static screen depends more on water flow and surface slope. It can perform well, but it needs more stable inlet conditions.
Cleaning is also different. A rotary drum screen often supports spray washing or other automatic cleaning methods. This helps reduce manual work. A static screen can be easier to inspect because it has fewer moving parts, but it may need more frequent surface cleaning if solids blind the openings.
Flow capacity also affects the decision. Rotary drum screens are usually chosen for continuous or higher-volume flows. Static screens are often chosen for simpler pretreatment lines, side streams, or applications where flow is moderate and predictable.
Screen media is another key factor. Wedge wire screen surfaces use continuous slots. Perforated screens use punched holes in selected shapes and sizes. Flat metal screens can provide a rigid surface for general filtration. The equipment type matters, but the screen opening and surface design often decide the real result.
A rotary drum screen is often the better choice when the process runs for long hours and carries a steady solids load. It suits applications where operators need continuous solids removal and cannot stop often for manual cleaning.
It is also useful when influent quality changes during the day. Food processing wastewater, textile wastewater, pulp and paper streams, and municipal pretreatment can all carry changing solids. One hour may bring more fibers. Another hour may bring more sludge or residue. Rotation helps keep solids moving instead of letting them sit on one place.
Automated cleaning is another reason to choose a rotary drum screen. In many separation systems, labor cost is not only about wages. It also includes downtime, safety risk, and process interruption. A rotating drum with spray cleaning can help keep openings clear and reduce operator attention.
A rotary drum screen may also help protect downstream equipment. Pumps, fine filters, nozzles, and membranes often suffer when large solids pass through. Early screening can reduce that load. It can make the whole treatment line easier to manage.
However, rotary units need more mechanical planning. They may include a drive, bearings, seals, spray lines, and access panels. These parts need inspection. The unit also needs room for installation and service. For this reason, a rotary drum screen is not always the simplest or cheapest choice.
Tip：Choose a rotary system when labor savings and stable throughput matter more than the lowest starting cost.
A static screen is often better when the process is simple, stable, and gravity-fed. It has no rotating drum, so the mechanical design is easier. Many plants choose static screens when they want fewer moving parts and lower energy demand.
Static screens can work well in pretreatment. They remove solids before the water reaches the next process step. In many cases, they are installed in channels, tanks, or compact frames. This makes them useful where space is limited.
A sieve bend screen is a strong example. Its curved surface helps the flow spread across the screen. The liquid passes through the slots, while retained solids move along the surface. This design is often used for dewatering, wastewater treatment, food processing, pulp separation, and mineral processing.
Static screens work best when flow is predictable. They also perform better when solids are not too sticky or greasy. If solids form a heavy mat on the surface, the screen may blind quickly. In that case, a rotary drum screen with active cleaning may be more practical.
Maintenance can be easier on a static screen because fewer mechanical parts are involved. Operators can inspect the screen surface directly. Replacement may also be simpler. Still, the screen surface must be selected carefully. Poor slot size or weak material can cause clogging, bending, or early wear.
The phrase “rotary drum screen vs static screen” can be misleading if you ignore the screen surface. Two systems with the same equipment style can perform very differently when they use different screen media.

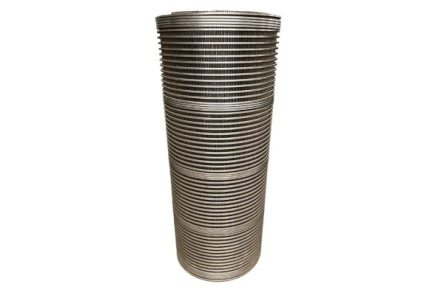

Wedge wire screens are widely used for liquid-solid separation. They are made from shaped profile wires welded to support rods. The spacing between the wires forms continuous slots. This structure can support precise separation, smooth flow, and lower clogging risk.
For a rotary drum screen, cylindrical wedge wire structures can be a strong choice. The screen surface must handle flow, solids impact, cleaning pressure, and rotation. It needs enough open area for liquid passage and enough strength for long service.
For static screens, wedge wire also has value. A sieve bend screen can use a curved wedge wire panel. The slot structure helps separate particles while the curved surface supports drainage and dewatering. The screen can be inserted into a frame for easier installation.
Perforated screens are another option. They use punched holes instead of continuous slots. Hole shape and hole size can be selected for different tasks. Perforated screens may be useful when strength, open hole pattern, and impact resistance are more important than fine slot control.
Flat metal screens can support general filtration and separation layouts. They are useful when the system needs a stable surface, simple installation, and controlled dimensions. In some processes, they may reduce replacement needs compared with disposable media.
Note：Do not choose the smallest opening by default. Too fine an opening can reduce flow and increase cleaning work.
Maintenance often decides whether a screen performs well over time. A screen that works well on paper may fail if it clogs every shift. Both rotary and static screens need proper cleaning access.
A rotary drum screen usually has more moving parts. It may need motor checks, bearing inspection, seal checks, and spray nozzle cleaning. These tasks add maintenance points. But the system may reduce manual cleaning because the drum moves solids away and can support automatic washing.
A static screen has fewer mechanical parts. This can reduce mechanical failure risk. It may also use little or no power. That makes it attractive for simple gravity separation. But if solids blind the screen surface, operators still need to clean it. Low mechanical cost does not always mean low total cost.
Clogging depends on solids type and screen design. Fibrous solids can bridge across openings. Greasy solids can coat the surface. Fine particles can pack into slots. Wedge wire designs can help reduce particle wedging because of their slot profile, but no screen is fully self-cleaning in every wastewater stream.
Operating cost includes more than energy. It includes labor, spare parts, downtime, water used for cleaning, lost production, and downstream repair. A rotary drum screen may cost more to install, but it can pay off when it reduces stoppages. A static screen may cost less to operate when the influent is stable and easy to separate.
Factor | Rotary Drum Screen | Static Screen |
Best for | Continuous flow and higher solids load | Stable flow and simple separation |
Cleaning | Often supports automatic spray cleaning | Often relies on gravity and manual access |
Energy use | Higher due to moving parts | Lower due to no drum drive |
Mechanical complexity | More components | Fewer components |
Clogging control | Better in variable streams | Good when solids are predictable |
Installation | Needs more planning and access | Often compact and simple |
Main value | Stable operation and labor reduction | Low energy and easy maintenance |
Start with the solids. Ask what must be removed and what can pass through. Large debris, fibers, sludge, and fine particles need different openings. A rotary drum screen may handle mixed solids better when cleaning is automated. A static screen may be enough when the solids are coarse and easy to drain.
Next, review the flow. Average flow is not enough. Look at peak flow, shock loading, seasonal change, and cleaning cycles. If the process sends sudden high flows to the screen, the selected area and open area must handle it.
Then, choose the screen opening. Slot size or hole size should match the target solids. If the opening is too large, solids pass through. If it is too small, the screen may blind. The correct opening balances capture rate and flow.
Material also matters. Stainless steel is common for water treatment, food processing, chemical filtration, and industrial wastewater because it resists corrosion and supports long use. For aggressive wastewater, material selection should match the chemical environment.
Cleaning access should be planned before purchase. Check if the screen can be sprayed, brushed, backwashed, lifted, or replaced. A good screen design should be practical for daily operation. If cleaning is difficult, even a high-quality screen may become a bottleneck.
Tip：Before ordering, share flow rate, solids type, target opening, material needs, and installation space with the supplier.
For continuous wastewater treatment, a rotary drum screen is usually the safer choice. It can support stable operation when solids loading changes. It also helps when operators want less manual cleaning and better protection for downstream equipment.
For food processing wastewater, the choice depends on solids type. A rotary drum screen may be better for mixed residues, fibers, and variable loads. A static sieve bend screen can work well when the flow is controlled and the main goal is simple dewatering or coarse separation.
For pulp, paper, or fiber-rich streams, clogging risk is high. Rotary screening often has an advantage because movement helps reduce solids buildup. Still, wedge wire slot design and cleaning method remain critical.
For small pretreatment lines, a static screen may be more practical. It is simple, compact, and easier to maintain. If the flow is stable and solids slide away from the surface, it can provide reliable separation at low operating cost.
For harsh industrial wastewater, screen media becomes the main decision point. Wedge wire screens offer precise slots and strong support. Perforated screens offer robust hole patterns. Flat metal screens offer stable filtration surfaces. The final selection should reflect the real liquid, solids, cleaning method, and service life target.
A rotary drum screen is better for continuous flow, variable solids, and automated cleaning. A static screen is better for simple gravity separation and lower energy use. ShuoQiao provides wedge wire, sieve bend, perforated, and flat metal screen solutions that help plants improve separation, reduce clogging, and match screens to real operating needs.
A: A rotary drum screen removes solids from flowing wastewater or process liquid.
A: A rotary drum screen is better for continuous, high-load separation.
A: It saves energy and has fewer moving parts.
A: Sticky solids, fine slots, grease, and poor cleaning access.
A: A rotary drum screen usually has higher mechanical and installation costs.
