Every water treatment system relies on a crucial internal foundation. You need a reliable wedge wire support grid to retain expensive media like carbon, sand, or ion-exchange resin. It must perform this retention while minimizing pressure drop across your vessel. The stakes are incredibly high in industrial filtration environments. If your vessel internals fail, you face catastrophic media loss. System clogging and unplanned downtime quickly follow, instantly draining your operational budget.
We created this complete buying guide to help you prevent these costly failures. You will discover a clear evaluation framework for specifying these critical components. We will guide engineers, plant managers, and procurement teams through exact material selection, structural design criteria, and vendor verification. By understanding these engineering fundamentals, you can ensure long-term reliability for your most demanding water treatment processes.
Superior TCO: V-wire profiles provide 35-45% open area, outperforming perforated plates in flow efficiency and achieving ROI within 18–36 months.
Retrofit-Ready: Sectional designs allow grids to pass through existing vessel manways without requiring major structural modifications.
Risk Mitigation: Proper material specification (e.g., leveraging PREN values) and precision slot sizing (0.25mm to 3.0mm) are non-negotiable to prevent media leakage and corrosion.
Manufacturing Matters: Our products adopt automated welding for mesh body combined with manual welding for supporting structures, delivering stable overall structure and consistent finished quality.

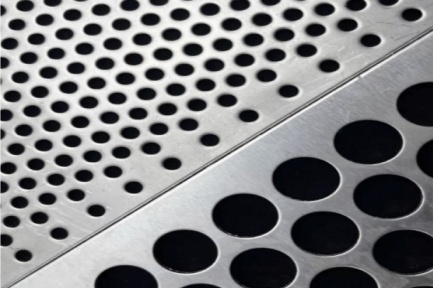

Many older facilities still rely on woven wire mesh or standard perforated plates. These legacy systems routinely fail in heavy-duty vessel applications. Woven wire mesh typically offers a very short operational lifespan of one to three years. The interwoven wires rub against each other under high dynamic pressure. They eventually snap, creating large tears. Expensive filtration media immediately escapes through these holes. Perforated plates present a different operational problem. They typically max out at a low 23-30% open area. The solid metal surface restricts fluid flow heavily. Furthermore, round holes act like traps. Particles matching the hole diameter easily lodge inside them. The plate blinds over, causing pressure to spike dangerously.
Wedge wire operates on completely different physics. The surface features a continuous V-shaped slot. This unique geometry creates an inherent self-cleaning effect during operation. When a particle approaches the screen, it either passes freely through the gap or remains blocked on the surface. Because the slot widens inward, particles cannot wedge themselves tightly inside the opening. This prevents blinding and maintains incredibly stable pressure differentials. You rarely need to shut down the vessel for manual scraping or deep cleaning.
Engineers often notice the initial CapEx premium attached to V-wire technology. However, you must evaluate this against its massive 10-to-25-year operational lifespan. You completely eliminate routine replacement labor and frequent material costs. Furthermore, the 35-45% open area dramatically reduces fluid resistance. Your pumps do not have to work as hard to push water through the media bed. This directly lowers your monthly electrical energy consumption. These combined savings easily justify the initial upgrade cost over standard mesh or perforated sheets.
Feature Comparison | Woven Wire Mesh | Perforated Plate | Wedge Wire Screen |
|---|---|---|---|
Open Area Efficiency | Variable (Prone to collapse) | Low (23% - 30%) | High (35% - 45%) |
Clogging Resistance | Poor | Very Poor (Holes trap particles) | Excellent (V-shaped self-cleaning) |
Expected Lifespan | 1 - 3 Years | 5 - 8 Years | 10 - 25 Years |
Structural Strength | Weak (Tears easily) | Moderate | Exceptionally High |
You cannot guess your required slot size. It dictates both your flow rate and your media retention capability. A mismatched slot size either restricts flow unnecessarily or lets expensive resin escape into downstream piping. You must select the right parameter based on your specific application.
0.25 mm – 0.5 mm: Ideal for fine resin retention in ion-exchange systems. We also use this range for critical membrane protection and advanced tertiary wastewater treatment.
0.5 mm – 1.0 mm: The industry standard for general municipal wastewater applications. It perfectly supports activated carbon filters and handles typical solid-liquid separation tasks.
1.0 mm – 3.0 mm: Suitable for coarse screening environments. Facilities use these larger slots for raw water intake screening and heavy sludge thickening processes.
Every wedge wire support grid sits beneath tons of heavy, wet media. The structural integrity must never fail. Engineers must calculate the static weight of the carbon or sand bed. They must also factor in high dynamic pressure differentials during aggressive backwashing cycles. If the grid span exceeds a certain diameter, standard profile wires cannot hold the weight alone. You must incorporate heavy-duty reinforcements. Manufacturers typically weld heavy support rods, thick flat bars, or robust I-beams underneath the screen surface. These span reinforcements prevent buckling, sagging, or total collapse inside the vessel.
Choosing the right alloy prevents localized pitting and premature corrosion. We rely on the Pitting Resistance Equivalent Number (PREN) to match metals to their operating environments. A higher PREN indicates stronger resistance to chlorides and corrosive chemicals.
Standard Municipal (Low Chloride): We specify SS 304L or SS 316L. These stainless steels offer excellent durability in neutral pH environments with low chloride levels.
Industrial and Coastal Wastewater: Facilities processing harsh fluids or seawater require an upgrade. Duplex 2205 provides a high PREN of 35.0. It delivers significantly enhanced chloride resistance and twice the mechanical yield strength of 316L.
Extreme Chemical and Thermal: Hot, highly acidic, or highly alkaline environments destroy standard alloys. You must specify Super Duplex 2507, Hastelloy C-276, or pure Titanium. These premium metals survive the most aggressive industrial chemical reactors.
Most existing reactor vessels and water treatment tanks feature severely limited access points. The entry manhole rarely exceeds 24 inches in diameter. This presents a massive logistical hurdle. When you fabricate a brand-new vessel, you can install a continuous, one-piece screen before welding the tank shut. Retrofitting an active vessel requires a different approach. You must specify a segmented or sectional design. The manufacturer slices the large circular screen into manageable panels. Technicians carry these individual pieces through the manway. They reassemble the entire structure inside the dark, confined space of the vessel.
Segmented designs solve the access problem, but they introduce a new vulnerability. A poorly engineered sectional assembly risks expensive media bypassing the seams. Even a one-millimeter gap between two panels allows tons of fine resin to escape over a few months. You must address this risk proactively during the design phase. Highlight the necessity of custom bolting systems. Every panel must lock tightly together. Furthermore, you should specify specialized edge gaskets and overlapping seals at all joint connections. When technicians bolt the panels down, the gaskets compress. This guarantees a true zero-media-leakage environment.
You must orient the profile wire to match your process flow direction. This maximizes daily operation and backwashing efficiency. You can specify Flow-In-To-Out (FITO) or Flow-Out-To-In (FOTI). FOTI typically features the flat surface facing outward, capturing solids on the exterior. FITO captures particles on the inner surface. If you install a screen with the wrong orientation, the V-shape works backward. Particles will wedge tightly into the narrowing slot. This instantly causes severe blinding. Always verify the flow dynamics with your engineering team before approving final drawings.
A reliable vendor provides much more than raw welded steel. They must function as an engineering partner. Look for a wedge wire support grid manufacturer that offers robust in-house CAD modeling. They should provide detailed 3D layouts before any steel gets cut. Furthermore, demand verified open-area calculations. Do not accept rough estimates. The vendor must also supply certified load-bearing simulations. You need hard math proving the span reinforcements will hold your specific media bed weight under maximum pump pressure.
The core quality of any screen hinges on its welding process. Our wedge wire screen mesh bodies are professionally fabricated via automated electrical resistance welding, which instantly bonds V-shaped wire firmly to support rods. This automated procedure effectively avoids human errors and thermal deformation, maintaining uniform weld quality and precise slot tolerance across the whole mesh surface.
For auxiliary structural parts such as flanges and connecting fittings, we adopt standard manual welding for fine assembly processing. The combination of automated mesh welding and precise manual auxiliary welding balances high production precision and flexible structural fitting, effectively preventing uneven slot sizes and material loss issues caused by unstable welding quality.
Your vessel requires a complete, integrated system to function correctly. Assess the vendor's ability to supply complementary vessel internals alongside the main grid. A capable wedge wire support grid manufacturer will seamlessly fabricate matching inlet baskets, advanced hub and header laterals, and emergency resin traps. Sourcing all internal components from one facility guarantees perfect fitment. It also simplifies your procurement schedule. Ask about their production timelines early. Custom engineering, drafting approvals, and precision manufacturing take time. Secure your spot in their production queue well before your scheduled plant shutdown.
Successfully outfitting your water treatment vessel requires balancing three critical factors. You must select precise slot sizing to retain media perfectly. You must choose robust materials to fight long-term corrosion. Finally, you must engineer high structural integrity to handle massive pressure differentials. Mastering this balance effectively minimizes your daily operational risks and eliminates unplanned downtime.
Your immediate next steps should focus on exact data collection. Gather highly accurate measurements of your vessel's inner diameter. Determine the exact particle size of your chosen filtration media. Log your system's maximum dynamic design pressure. Once you collect these three data points, reach out to a shortlisted, engineering-focused manufacturer. Request a formal load-calculation report and a preliminary CAD drawing to begin your upgrade process.
A: You eliminate leakage by using precision-engineered overlapping joints. We incorporate custom bolting systems directly into the panel frames. Furthermore, we install specialized edge gaskets between every segment. When technicians tighten the bolts during installation, these gaskets compress tightly. This creates an impenetrable, liquid-tight seal that guarantees zero media bypass.
A: Custom engineering, drafting approvals, and specialized manufacturing generally require a specific window of 4 to 8 weeks. Highly complex sectional designs or exotic alloys may extend this timeline slightly. We strongly emphasize early procurement involvement. Engaging your manufacturer during the initial planning phase prevents costly delays during your scheduled plant shutdown.
A: Yes. While standard SS316L is perfectly sufficient for most general water treatment, high-heat applications require specific upgrades. Environments exceeding 400°C or containing aggressive, boiling chemicals easily destroy standard alloys. We solve this by fabricating the grid from high-temperature metals like SS 321, SS 347, or specialized alloys like Monel and Hastelloy.
