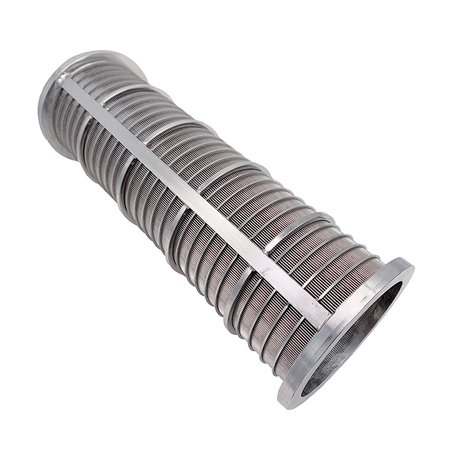

Our Wedge Wire Screen Basket, widely called Johnson V-Wire Basket, is precision welded from V-shaped profile wedge wire and support rods. It features continuous uniform slot openings, outstanding anti-clog performance, high mechanical strength and corrosion resistance. Widely adopted for solid-liquid separation, dewatering and fine particle recovery in mining, coal preparation, wastewater treatment, screw press separators, centrifuges and food starch processing. Custom dimensions, slot gaps (0.025mm up to 10mm), material and shape are available to match your equipment.
Johnson V-wire wedge wire basket, continuous slot design
Anti-clogging, high flow rate, durable for continuous heavy-duty work
Stainless steel 304 / 316L / Duplex steel optional

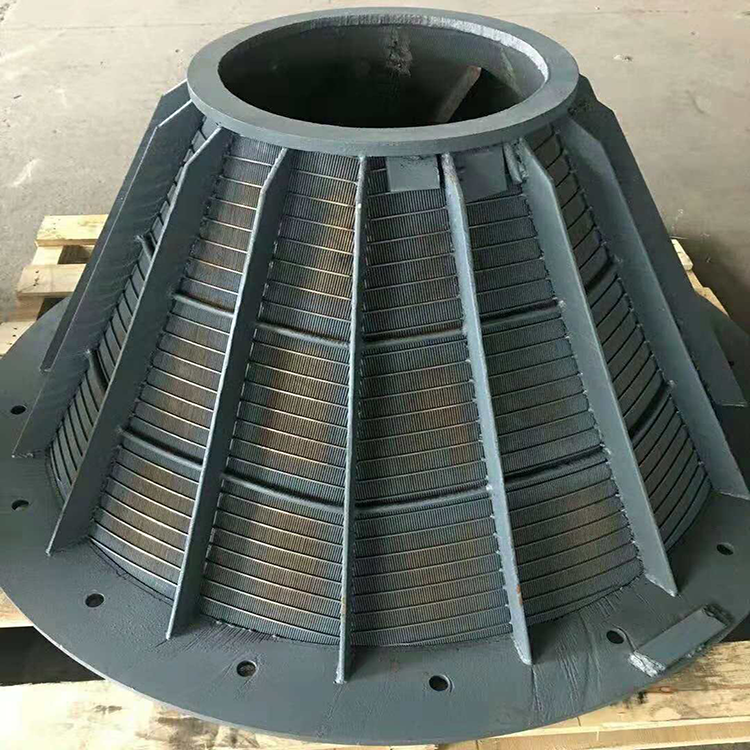

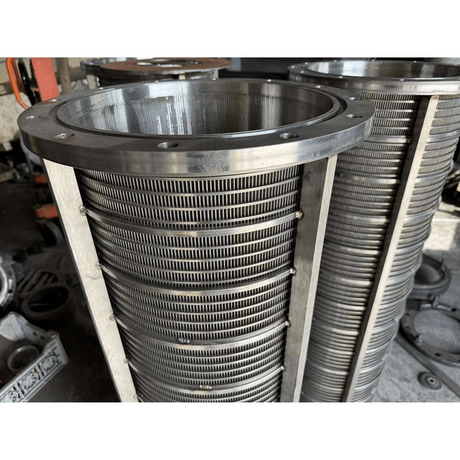

Custom conical & cylindrical baskets for centrifuge & screw press
OEM & ODM available, factory direct supply
✅ Precision Welded Wedge Wire Construction, Stable & Consistent Slot Opening
✅ Anti-blinding / Anti-clog V-wire profile, less blockage compared with woven mesh
✅ High open area, high flow capacity, low pressure drop
✅ Wear & corrosion resistant, optional SS304 / SS316L / Duplex 2205
✅ Heavy-duty design, withstand high centrifugal force and slurry abrasion
✅ Custom cylindrical / conical basket shape, slot size, diameter & height
✅ Easy installation, replaceable filter element for centrifuge & screw press
| Wedge Wire Screen Basket Size | |
Materials | - SS304: General water, light chemical, low abrasion filtration - SS316L: Wastewater, mild acid, food & beverage, anti-corrosion - Duplex 2205: Severe corrosion, high chloride, mining slurry |
Slot Size | 0.02 mm – 2.0 mm, custom slots |
Profile Wire: | 0.5 mm × 1 mm, 0.75 mm × 1.3 mm, 1 mm × 2 mm, 1.5 mm × 4 mm, 2 mm × 4 mm, 2.2 mm × 4.5 mm, 2.8 mm × 5 mm, 3 mm × 6 mm, 2.8 mm × 6.5 mm, 3.4 mm × 7.5 mm |
Support Rod Type | Triangle wire, round rod, flat bar or square wire |
Basket Diameter | 500 mm, 600 mm, 800 mm, 1,000 mm, 1,200 mm, 1,300 mm, 1,530 mm, 1,800 mm, 2,000 mm |
Basket Height | 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm |
Remarks | Our designers will help you choose the right shape, size, and spacing according to individual applications, working conditions, and design assumptions |
Mining & Coal: Fine coal dewatering, mineral slurry classification, tailings recovery
Wastewater & Sewage: Sludge dewatering, rotary strainer, water intake filtration
Screw Press Separator: Manure, biogas, pulp, sludge solid-liquid separation
Centrifuge Machine: Pusher centrifuge, screen bowl centrifuge basket
Food & Starch: Starch, sugar, juice, beverage filtration and dewatering
Oil & Water Separation, Well screen filtration, chemical processing
We produce custom wedge wire screen baskets according to your drawing or sample. Please provide required diameter, height, slot opening, material and connection type for quotation.
Q: What is a wedge wire screen basket?
A: Also named Johnson V-wire basket, it is a welded filter element made of V profile wire and support rods, used for precise solid-liquid separation and dewatering.
Q: What materials are used to make Wedge Wire Screen Baskets?
A: Baskets are typically made from stainless steel (304, 316, 316L, 310S, Duplex 2205/2507) or other metal alloys, providing excellent corrosion resistance, strength, and durability.
Q: Can I customize the product?
A: Of course. We have professional technicians who can customize and produce various filter elements according to your needs and drawings. Our technicians can also provide drawing designs based on your requirements.
Q: Why should you buy from us not from other suppliers?
A: ① We Support OEM & ODM.
② We can help customers design drawings.
③ We have own professional research and development group.
