Triangle Hole Self-cleaning Screen Mesh | PU Polyurethane Band Anti-Clog Vibrating Screen Panel for Mining Quarry Aggregate Screening

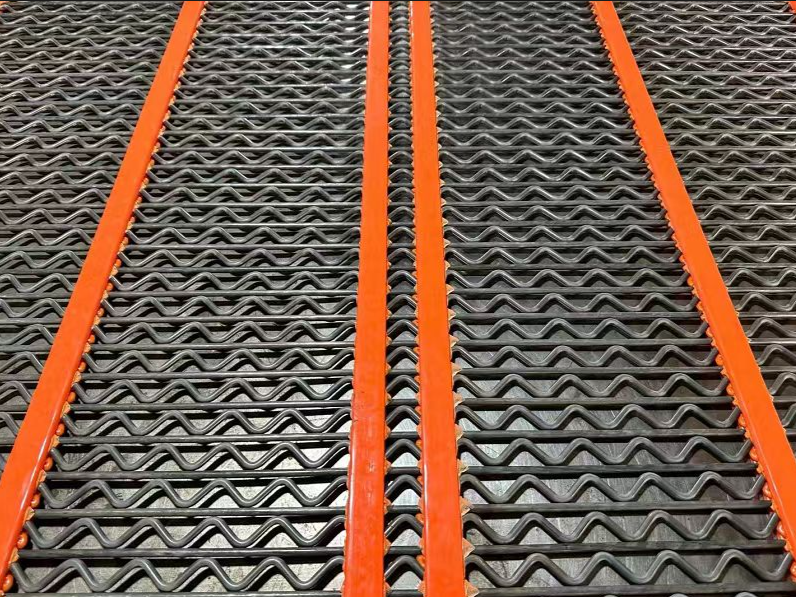

Triangle Hole Self-cleaning Mesh - PU Band Anti-Clog Vibrating Screen Panel

Our Triangle Hole Self-cleaning Mesh (Triangular Opening Self Cleaning Screen) is specially engineered to solve the common pain point: screen blinding and material clogging when screening wet, sticky aggregate, ore, coal, gravel and sand.

Different from heavy framed screen panels, this self-clean mesh does NOT adopt reinforced metal frame. The o polyurethane (PU) strips act only as flexible connectors to fix the high-tensile manganese steel woven wires. The combination of rigid straight wires and zig-zag crimped wires forms unique triangle openings.

When the vibrating screen runs, the steel wires generate differential secondary vibration. The triangular apertures slightly deform continuously during operation, shaking off stuck sticky particles automatically, achieving continuous self-cleaning performance, greatly raising screening efficiency and cutting your machine downtime & screen replacement cost.

Key Features

1. ✅ Triangular hole self-cleaning design, strong anti-clogging & anti-blinding ability, ideal for wet and sticky materials

2. ✅ High tensile manganese steel wire body, excellent wear resistance & impact resistance for heavy load screening

3. ✅ Flexible PU (polyurethane) cross bands, only for wire fixation, NO reinforced rigid frame

4. ✅ Secondary vibration mechanism: wires vibrate independently to release pegged particles automatically

5. ✅ Higher open area than traditional woven screen mesh, improve throughput capacity

6. ✅ Customizable aperture, wire diameter, panel width & length to fit your vibrating screen machine

7. ✅ Easy installation and replacement, reduce maintenance labour cost

Material Composition

• Screen wire: High tensile manganese steel (65Mn)

• Connecting strips: Polyurethane / PU (orange elastic strips, NOT reinforced frame)

• Hole shape: Triangle / Triangular opening

Typical Technical Parameters (Customizable)

• Aperture range: 2mm ~ 50mm

• Wire diameter: 1.6mm ~ 8mm

• Panel size: Custom cut according to your vibrating screen deck

• Surface: plain woven

• Working temperature: -20℃ ~ +80℃

Application Industries & Materials

• Mining: Iron ore, gold ore, mineral aggregate grading

• Quarry: Crushed stone, rock, gravel screening

• Coal industry: Raw coal, coal slurry wet screening

• Sand & gravel plant: manufactured sand, river sand separation

• Recycling: construction waste, crushed concrete screening

• Other: fertilizer, wet clay, sticky mineral material separation

Working Principle

Alternating straight rigid wires and curved zigzag wires form triangular openings, held together by flexible PU strips. While the vibrating screen is operating, each steel wire vibrates independently with different amplitude. The triangle holes dynamically change shape, shaking out trapped sticky particles and pebbles, preventing blinding and blockage, maintaining stable screening throughput continuously.

Why Choose Triangle Hole Self-cleaning Mesh?

• 30%+ higher screening efficiency for sticky wet materials

• Longer service life, fewer screen change-outs

• Less downtime for cleaning clogged mesh

• Custom sizes & apertures match most popular vibrating screen brands

Package & Delivery

Packed in wooden pallet / wooden case. Custom export packaging available.

Samples can be supplied for performance testing.

MOQ: Negotiable, small trial order accepted.
