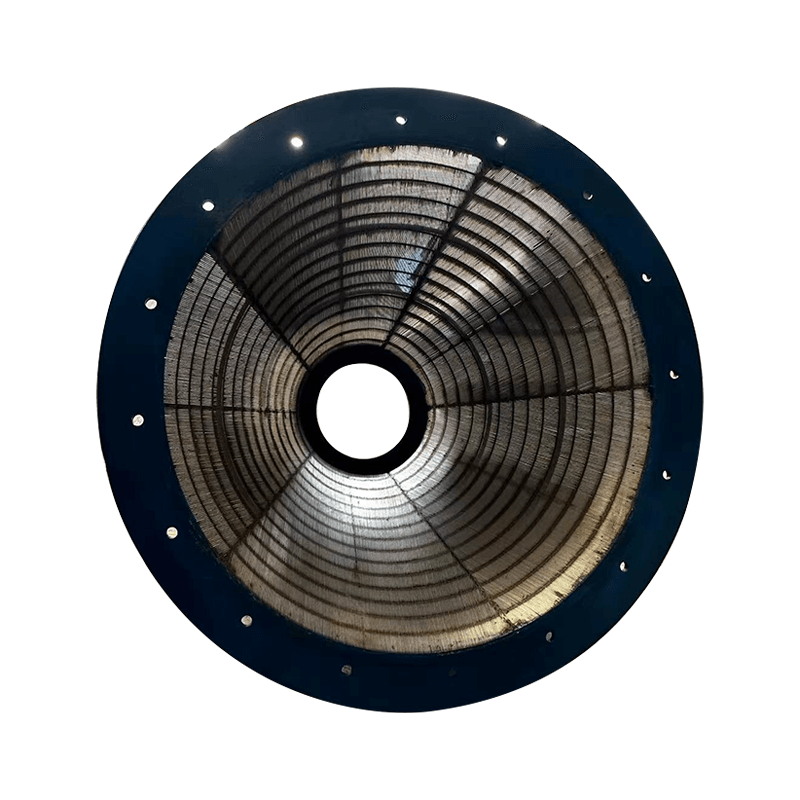

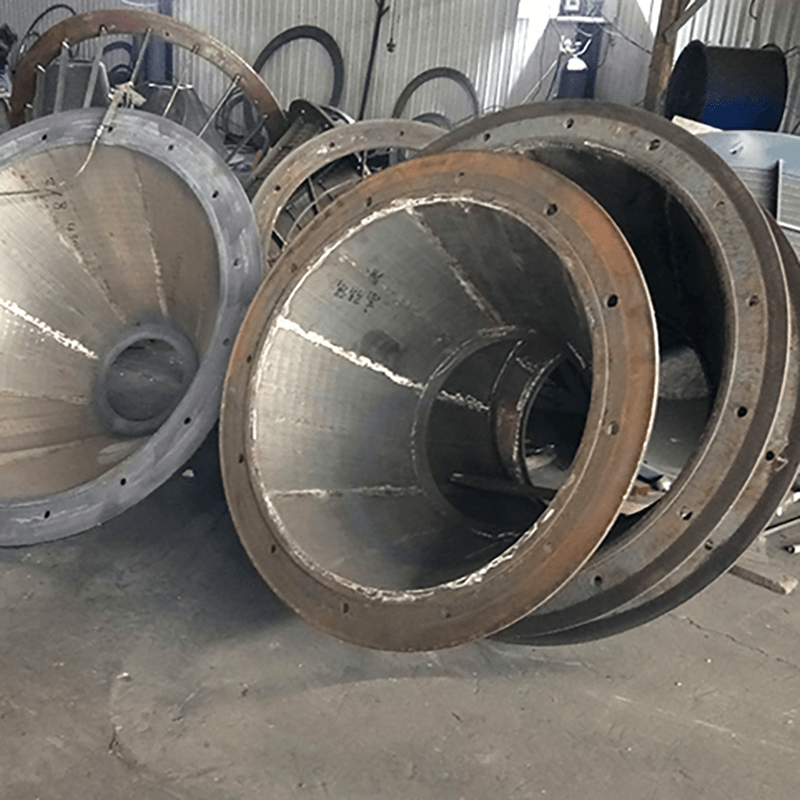

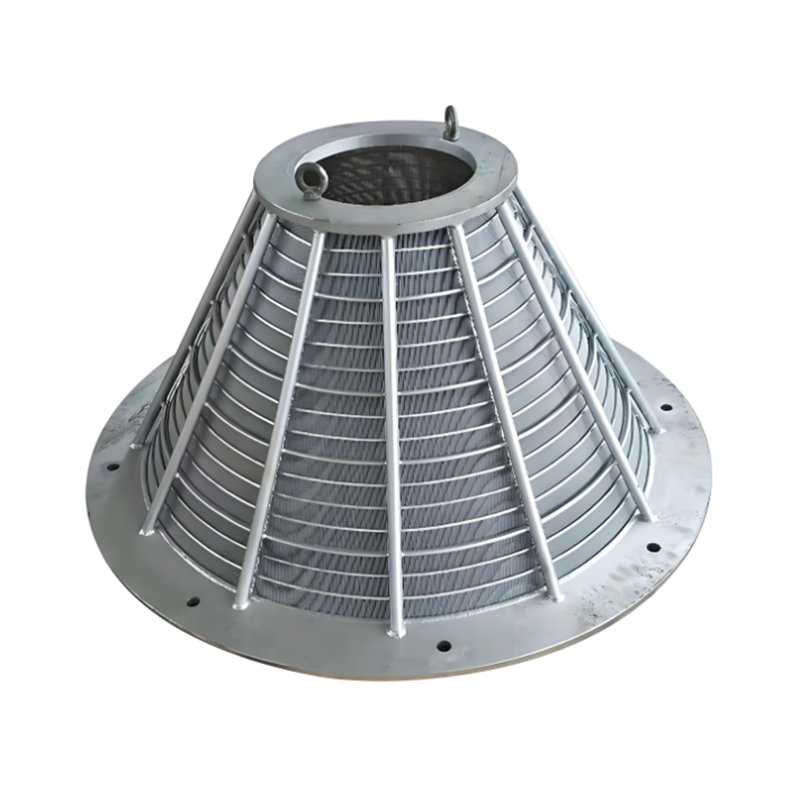

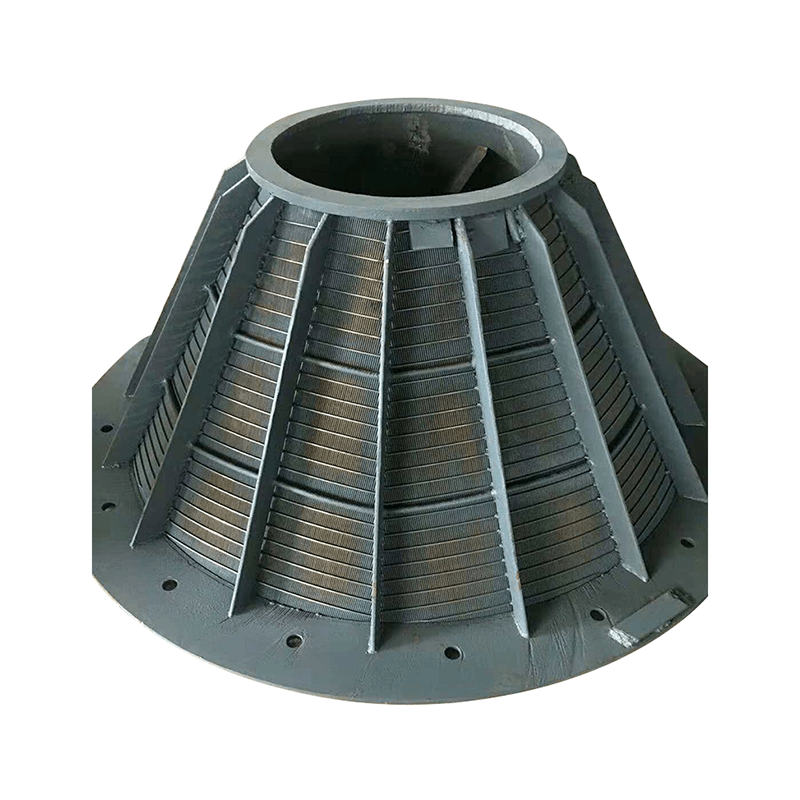

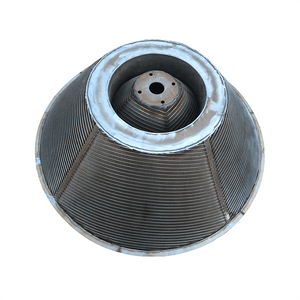

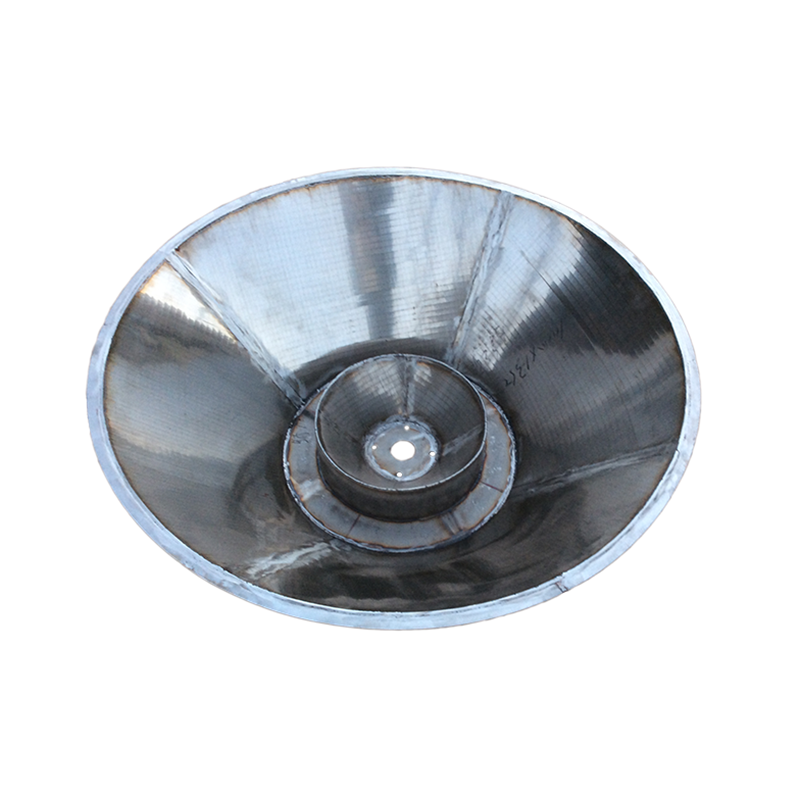

The Wedge Wire Screen Basket is a critical component in the dewatering system of centrifuges, primarily used for centrifugal dehydration. It is constructed from V-shaped profile wires and support rods, which are resistance welded together to form a strong and durable structure. The basket features a narrow top and wide bottom design, making it compatible with various types and models of centrifuge machines for efficient separation and dewatering.
▎Product Advantage
Excellent Air Permeability & Filtration Performance – Capable of consistently filtering particles ranging from 3–100 μm.
High Porosity & Large Filtration Area – Offers a wide filtration surface and strong particle holding capacity for efficient separation.
Durable Under Extreme Conditions – Performs reliably in high or low temperatures and high-pressure environments, with excellent resistance to erosion and abrasion.
Easy to Clean – Surface debris can be removed using scrapers, steel brushes, or backflushing methods, ensuring smooth operation.
Reusable – Can be cleaned and reused effectively with ultrasonic waves, chemical reagents, or other washing methods, extending service life and reducing costs.
▎Technical Parameters
| Wedge Wire Screen Basket Size | |
Materials | Stainless steel. 304, 314L, 316, 316L or 321, 310S, Duplex steel 2205/2507 and others metal alloys |
Slot Size | 0.04 mm – 1.0 mm. |
Profile Wire: | 0.5 mm × 1 mm, 0.75 mm × 1.3 mm, 1 mm × 2 mm, 1.5 mm × 4 mm, 2 mm × 4 mm, 2.2 mm × 4.5 mm, 2.8 mm × 5 mm, 3 mm × 6 mm, 2.8 mm × 6.5 mm, 3.4 mm × 7.5 mm |
Support Rod Type | Triangle wire, round rod, flat bar or square wire |
Basket Diameter | 500 mm, 600 mm, 800 mm, 1,000 mm, 1,200 mm, 1,300 mm, 1,530 mm, 1,800 mm, 2,000 mm |
Basket Height | 300 mm, 400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm |
Remarks | Our designers will help you choose the right shape, size, and spacing according to individual applications, working conditions, and design assumptions |
▎Product Uses
High Polymer Industry – Used in synthetic materials, plastics, and film production for efficient filtration and separation.
Chemical Industry – Suitable for petrochemical, petroleum, paint refining, as well as starch and sugar processing.
Pharmaceutical & Food Industry – Ideal for medicine or food refining and recycling processes.
Mechanical & Vessel Industries – Applied in hydraulic machinery, milling oil production, and gas flow control.
Air & Water Treatment – Effective for sterilization, filtration, and purification of air and water systems.
▎Product Video
▎FAQ
Q: What is a Wedge Wire Screen Basket used for?
A: It is a critical component in centrifugal dewatering systems, primarily used for centrifugal dehydration in industries such as polymer, chemical, pharmaceutical, food, mechanical, and water/air treatment.
Q: What materials are used to make Wedge Wire Screen Baskets?
A: Baskets are typically made from stainless steel (304, 316, 316L, 310S, Duplex 2205/2507) or other metal alloys, providing excellent corrosion resistance, strength, and durability.
Q: What sizes and shapes are available?
A: Basket diameters range from 500 mm to 2,000 mm, and heights from 300 mm to 1,000 mm. Profile wires, support rods, and slot sizes can all be customized based on your application, including triangular, round, flat, or square support rods.
Q: Can I customize the product?
A: Of course. We have professional technicians who can customize and produce various filter elements according to your needs and drawings. Our technicians can also provide drawing designs based on your requirements.
Q: Why should you buy from us not from other suppliers?
A: ① We Support OEM & ODM.
② We can help customers design drawings.
③ We have own professional research and development group.
