Sieve Bends Vs. Vibrating Screens: Which Is Better For Gold Mining Operations

Gold mineral processing demands absolute precision. You cannot afford inefficient classification equipment. The choice of screening equipment directly impacts fine gold recovery rates and maintenance downtime. Misaligning the screen type with your slurry’s physical properties leads to lost yield in the tailings. It also causes excessive wear on downstream machinery. Operators often struggle to balance separation efficiency against mechanical reliability.

This guide evaluates sieve bends against vibrating screens through an engineering lens. We focus specifically on dewatering, desliming, and sizing applications in gold circuits. Comparing these mechanisms side by side reveals distinct operational advantages. You need accurate data to optimize your plant architecture.

We will provide plant managers and process engineers with a clear, data-oriented evaluation framework. You will learn how to shortlist the correct separation technology. We will also show you how to design a combined circuit for maximum efficiency.

Key Takeaways

• Sieve Bends: Offer zero-power, low-maintenance dewatering and desliming by utilizing curved gravity and centrifugal forces. Ideal for high-moisture slurries and preliminary media recovery.

• Vibrating Screens: Deliver superior sizing accuracy and high-capacity dry/wet sorting via dynamic motor-driven acceleration, but require higher CAPEX, OPEX, and footprint.

• Operational Reality: The decision is rarely binary. High-yield gold operations frequently deploy sieve bends as cost-effective primary dewatering nodes to protect and optimize downstream vibrating screens.

1. Core Mechanisms & Engineering Realities

The Static Separation Approach

Static screens utilize precise geometry rather than mechanical movement. Slurry flows over a curved deck at a calculated velocity. The engineered curve generates significant centrifugal force. This force pushes water and undersize fine particles through the deck slots. Most systems use durable wedge wire or polyurethane media to execute this cut. Meanwhile, oversize material simply slides down the screen profile. The Coanda effect keeps the fluid attached to the wedge wire. This provides a sharp, continuous cutting action.

The engineering reality heavily favors mechanical simplicity. A static unit requires no electrical power. Some modern designs utilize integrated tilting mechanisms, but the core separation remains passive. Capacity per square meter typically exceeds that of flat static screens. The gravitational and centrifugal synergy pulls liquids away faster. This translates to massive liquid-handling capabilities in a compact vertical orientation.

The Dynamic Separation Approach

Dynamic separation relies entirely on induced mechanical energy. A vibrating screen utilizes eccentric shafts or heavy-duty vibrating motors. These components generate linear, circular, or elliptical motion. This high-G acceleration physically stratifies the material bed. It throws heavier, larger particles upward while forcing undersize particles down through the mesh. The intense motion rapidly exposes all particles to the open apertures.

The engineering reality introduces deep complexity. You can highly customize these machines. You might select multiple decks, varied amplitudes, or specific stroke frequencies. However, this dynamic force introduces mechanical fatigue. You must manage bearing wear, spring degradation, and complex structural support requirements. Massive dynamic loads transfer into the surrounding infrastructure. You must engineer your facility to absorb this constant vibration safely.

2. Performance Comparison Matrix for Gold Processing

Cut Point Precision & Efficiency

Dynamic machines deliver superior results for precise grading. They easily handle complex multi-deck particle size distribution (PSD) requirements. If you need three distinct size classifications simultaneously, you deploy a multi-deck dynamic separator. You can adjust counterweights and motor speeds to dial in exact separation parameters. This makes them indispensable for final sizing before sensitive gravity recovery stages.

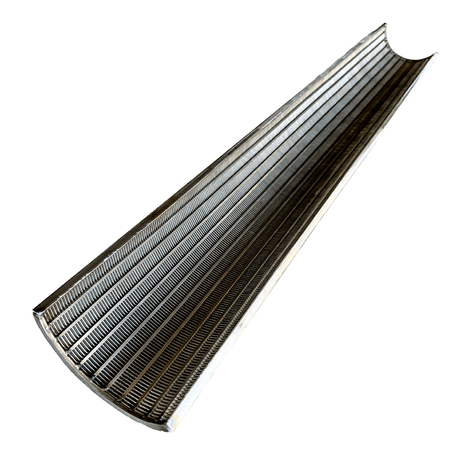

Static screens excel at fixed cut points. They remain highly effective for slimes removal and preliminary washing. A Sieve Bend performs exceptionally well here. However, they lack adjustability once installed. You cannot change the stroke or frequency. If your feed characteristics drastically change, you must physically replace the screen panels to adjust the cut point.

Dewatering & Moisture Management

Static units excel at bulk water removal from slurries. They achieve this without any energy input. The sharp cutting action of stainless steel wedge wire acts as a high-volume liquid-solid separator. The fluid slices through the slots while solids tumble down. This efficiently reduces the hydraulic load on downstream equipment.

Specific dewatering models of dynamic screens utilize different physics. They feature a negative inclination, tilting upward against the flow. High-frequency, low-amplitude vibration actively breaks water surface tension. This mechanical action squeezes residual moisture out of the solid cake. They achieve a significantly lower final moisture content than static gravity drainage.

Blinding & Pegging Resistance

Static screens remain prone to gradual wear. Abrasive gold slurries slowly alter the slot size over millions of tons. However, they generally resist blinding in high-moisture slurries. The continuous washing action of the incoming feed clears the slots. Gravity ensures sticky materials slide off before they dry and plug the openings.

Dynamic screens are highly susceptible to blinding. If your clay content is high or moisture is inconsistent, the mesh will plug. Particles wedge themselves into the apertures. This drastically reduces the effective screening area. Operators often require secondary interventions to maintain throughput. You might install specialized polyurethane panels, pressurized water spray bars, or complex flip-flow technologies to combat this plugging.

Performance Summary Chart

3. Maintenance Downsides & Operational Reliability

Infrastructure & Energy Demands

Static units offer unmatched simplicity during installation. They lack heavy motors, suspension springs, and complex sub-frames. You do not need to construct massive reinforced steel platforms. The equipment bolts into existing pipework structures easily. Furthermore, they operate entirely off the grid. They establish a zero-power baseline for preliminary separation. You rely only on the kinetic energy of your existing feed pumps.

Dynamic units dictate rigorous structural engineering. The continuous eccentric motion generates immense dynamic loads. If you mount a dynamic unit on a weak structure, it will tear the platform apart. They also require dedicated energy infrastructure. Continuous electrical loads scale heavily with your throughput requirements. You must run dedicated heavy-duty cabling and secure reliable power distribution panels.

Wear Rates & Intervention Schedules

Primary wear on static units isolates entirely to the screen media. The abrasive gold slurry eventually rounds off the sharp leading edges of the slots. Once those edges round off, separation efficiency drops. Trustworthy manufacturers address this with intelligent design. They utilize reversible housings. This feature allows operators to manually flip the screen panel upside down. Doing so presents a fresh leading edge to the slurry and effectively doubles the wear life before complete replacement.

Dynamic equipment mandates strict predictive maintenance schedules. You cannot ignore them. Bearings, drive belts, and isolation springs endure constant mechanical stress. You must lubricate bearings precisely. You must tension belts regularly. A single mechanical failure—like a seized bearing—results in immediate, catastrophic circuit downtime. You must keep an extensive inventory of specialized moving parts on site.

4. The 5-Point Evaluation Framework for Your Plant

Procuring the right classification technology requires rigorous data collection. You cannot guess plant parameters. Use this checklist to shortlist your equipment.

1. Throughput Requirements (tph): Determine your peak hourly tonnage. Dynamic screens scale better for massive dry or semi-dry bulk handling. They move mountains of aggregate. Static screens handle high-volume liquid flows far more efficiently. They process massive hydraulic loads within a highly compact footprint.

2. Feed Size Distribution & Cut Points: Identify the exact percentage of "half-size" and "oversize" particles. Compare these to your required cut point. High volumes of near-size particles will blind a dynamic mesh. You must map your PSD accurately to select the right aperture geometry.

3. Slurry Viscosity & Clay Content: High clay concentrations (15-20%+) spell disaster for traditional meshes. Clay acts like a binder. It quickly seals the open area of dynamic equipment. Determine if you require a static washing stage first. Pre-washing removes slimes and prevents downstream blinding.

4. Screen Media Selection: You must evaluate your panel materials. Polyurethane offers high wear life and maintains a constant cut point over time. It is highly durable against impact. Stainless steel wedge wire delivers maximum open area. Its sharp profile remains optimal for rapid bulk dewatering.

5. Available Footprint & Headroom: Measure your physical plant space. Static units utilize vertical gravity drops. They require significantly less horizontal floor space. Multi-deck dynamic machines demand massive horizontal footprints and extensive headroom for maintenance access and overhead cranes.

5. The Combined Approach: Why "Vs" is Often the Wrong Question

The Optimization Strategy

Modern plant managers rarely treat these technologies as mutually exclusive. Treating them as competitors limits your engineering potential. High-performing facilities utilize both in a unified architecture. They leverage the unique strengths of each machine to compensate for the other's weaknesses. This hybrid strategy significantly lowers overall equipment stress and maximizes continuous uptime across all processing industries.

Typical Workflow Integration

A highly optimized gold circuit follows a specific sequence. First, you deploy a static curved deck directly at the hydrocyclone underflow. This unit acts as a primary scalper. It rapidly strips away bulk water and removes ultra-fine slimes. It accomplishes this preliminary heavy lifting at zero energy demand.

Next, you feed this newly thickened, optimized underflow directly into a dynamic machine. The dynamic unit no longer drowns in excess water. It can now focus entirely on highly accurate sizing. The stratified bed efficiently handles the complex PSD before sending material to the next milling or gravity recovery stage.

Business Outcome & Process Stability

This combined approach protects your delicate dynamic components. By removing the massive hydraulic load early, you prevent unnecessary wear on vibrating decks. You reduce the strain on isolation springs and eccentric bearings. It eliminates flooded decks and erratic screening trajectories. Ultimately, this tiered architecture ensures maximum fine gold recovery efficiency while keeping mechanical maintenance deeply predictable.

Achieving this balance requires precise flow modeling. You must consult professionals who understand both static fluid dynamics and dynamic particle acceleration. Implementing this architecture demands specialized engineering service to validate structural loads and pipework transitions correctly.

Conclusion

• Choose a static curved deck to prioritize continuous, low-maintenance bulk dewatering. They excel at desliming heavy slurries without drawing grid power.

• Opt for dynamic equipment when your primary objective involves precise aggregate sizing, multi-stage classification, or achieving ultra-low final moisture.

• Always deploy static pre-screening to protect dynamic screens from overwhelming hydraulic loads. This dual setup prevents blinding and reduces bearing fatigue.

• Never guess your slurry parameters. Before issuing an RFQ, conduct a comprehensive slurry analysis detailing particle size distribution, clay content, and bulk density.

• Consult suppliers capable of modeling both static liquid trajectories and dynamic particle stratification to validate your final equipment scale.

FAQ

Q: What is the typical arc length of a standard sieve bend in mining?

A: Standard configurations vary based on drainage needs. An 800mm arc length suits space-constrained media recovery. A 1200mm length is the industry standard for balanced operations. A 1600mm arc length provides maximum drainage capacity, effectively handling severe incoming flow surges.

Q: Can polyurethane screen panels be used on both static and vibrating equipment?

A: Yes, polyurethane is highly versatile. It offers superior wear life, impact resistance, and noise reduction across both platforms. However, stainless steel wedge wire generally remains superior for maximum open-area bulk dewatering due to its sharper cutting profile.

Q: How do I prevent sticky gold-bearing clay from blinding my screen?

A: Static screens struggle to shear heavy, dry clays. To prevent blinding, you should introduce high-pressure water spray bars to liquefy the clay. For dynamic equipment, upgrading to specialized high-frequency flip-flow screen decks provides the rapid acceleration needed to self-clean sticky materials.
