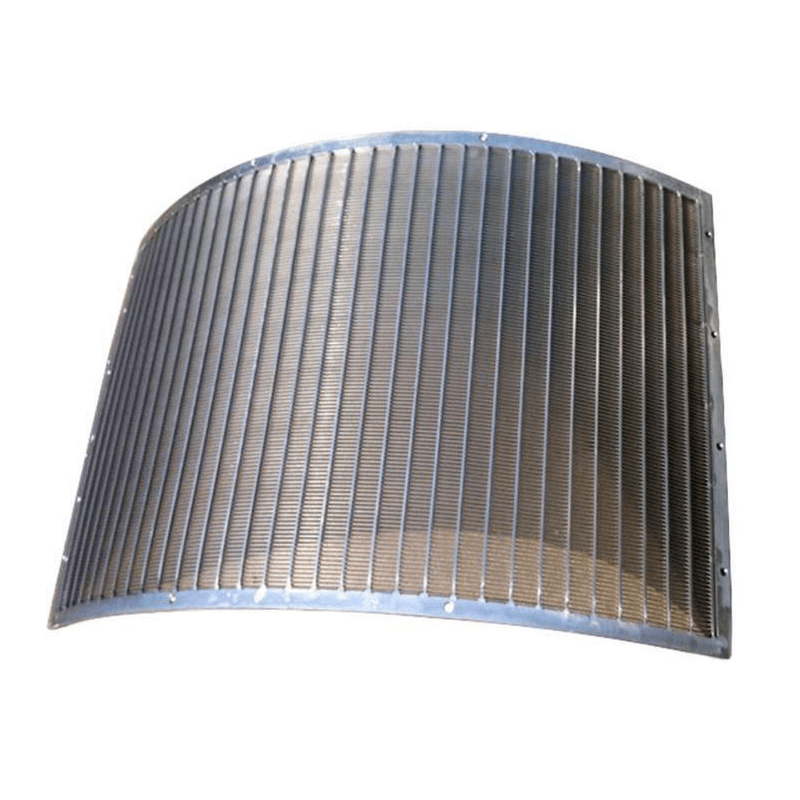

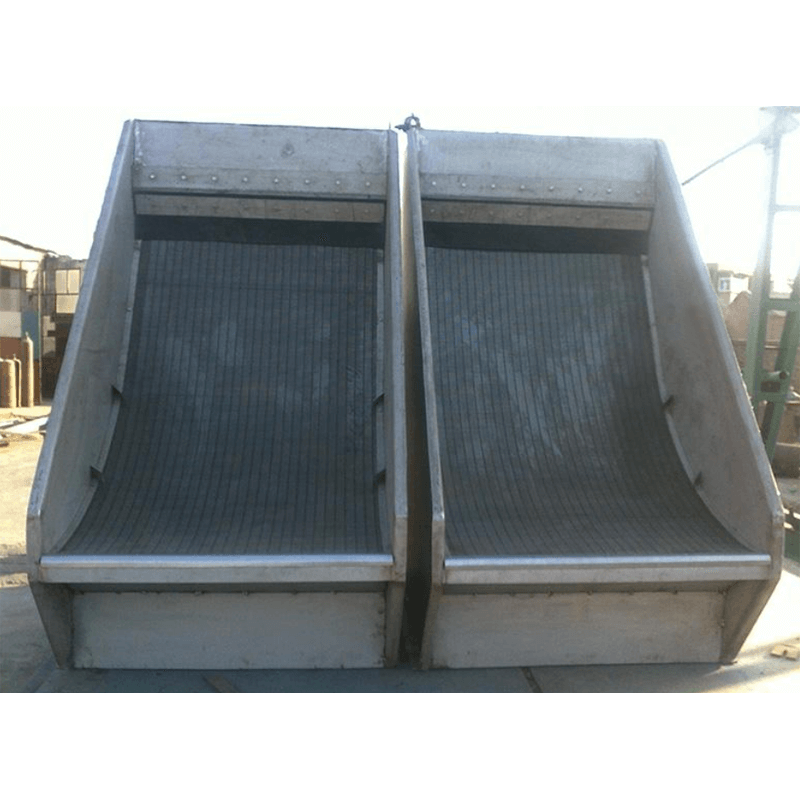

The wedge wire sieve bend screen, also known as the run down screen, de-watering screen, side hill screen, DSM screen, Parabolic screen,curve screen, etc, is the pressure bend sieves. The curved bend screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

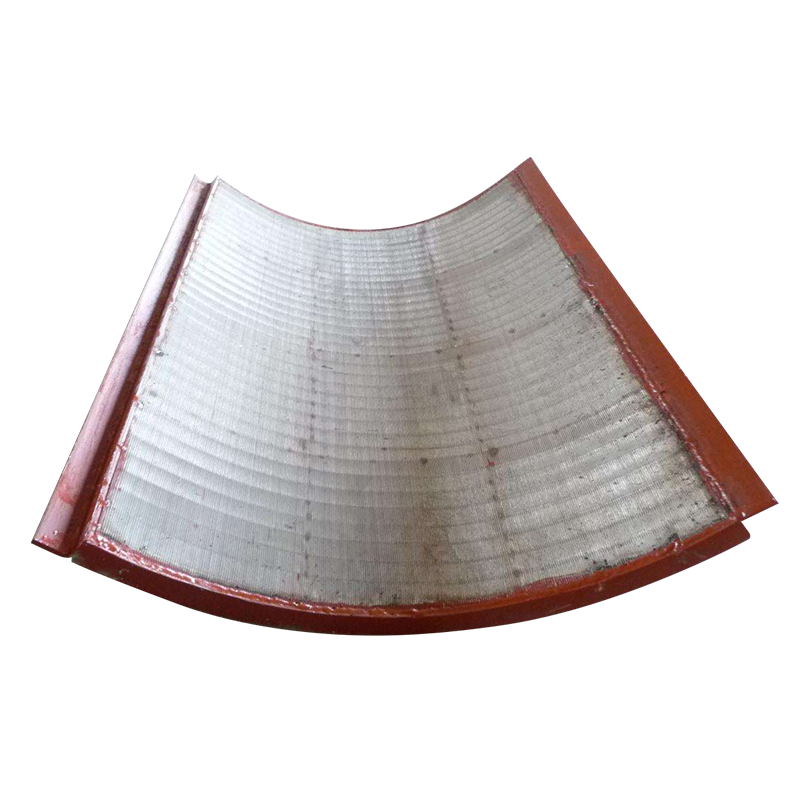

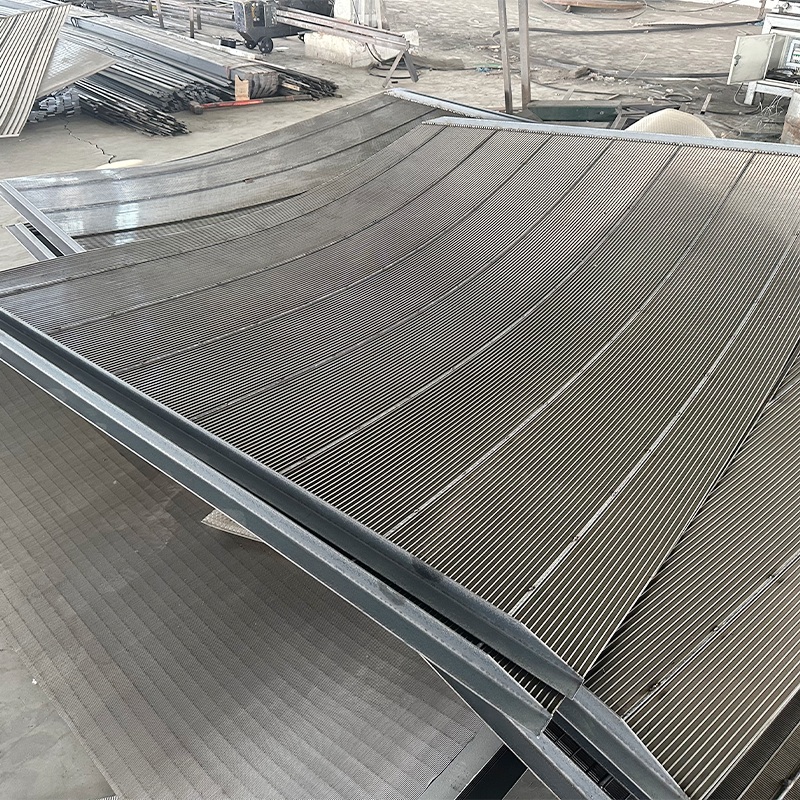

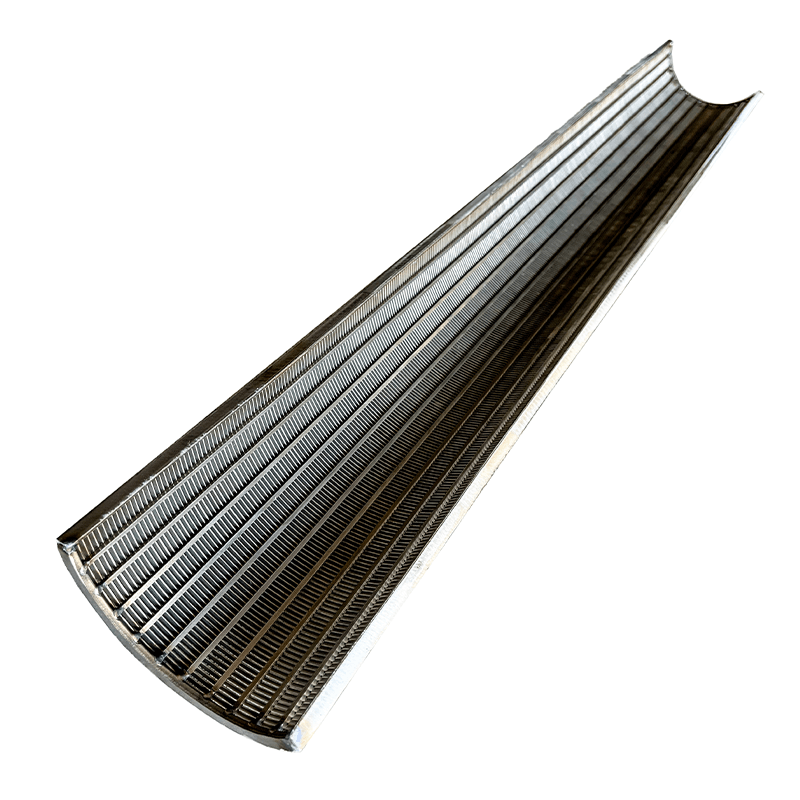

Wedge wire screen is manufactured by welding the stainless steel V-shaped profile wires to the wedge wire support rods. Then the wedge wire panel screens are cutting and curved into wedge wire sieve bend screen with common 45°, 60° and other degree arcs. At last, the wedge wire sieve bends will be inserted into a stainless steel frame for easy installation onto equipment.
▎Product Advantage
Excellent Air Permeability and Filtration Performance
Provides stable and precise filtration of particles ranging from 3–100 μm, ensuring reliable separation efficiency.
High Mechanical Strength
Designed to withstand large pressure drops, offering outstanding durability and structural stability during continuous operation.
Uniform Slot Structure
Features evenly spaced slots for consistent filtration and uniform filter cake formation. The screen is easy to clean and reuse, and can be effectively washed by ultrasonic cleaning or chemical reagents.
Optimized Wedge Slot Design
The wedge-shaped openings enhance backflushing and regeneration performance, extending service life and maintaining high filtration efficiency.
Wide Working Temperature and Pressure Range
Performs reliably under high or low temperature and pressure conditions, with excellent resistance to pressure, heat, corrosion, aging, and adaptability to various fluid media.
▎Technical Parameters
Material | stainless steel wire 304, 316, 316L, 321, etc. |
Screen Arc Angle | 45°, 60°, 120°, 270° and 300° |
Slot Size | 0.25 mm - 1 mm |
Two Main Typical Product Specification | |
Type 1 | |
Panel Width | 2000 mm |
Arc Length | 1885 mm |
Angle | 60° |
Slot Size | 0.5 mm |
Profile Wire | 1.8 mm × 4.5 mm |
Support Bar | 2 mm × 9.5 mm |
Type 2 | |
Panel Width | 2000 mm |
Arc Length | 1885 mm |
Angle | 60° |
Slot Size | 0.25 mm |
Profile Wire | 1.27 mm × 2.4 mm |
Support Bar | 2 mm × 4.2 mm |
Customized specifications can also be made according to requirements | |
▎Product Uses
The Wedge Wire Sieve Bend Screens are primarily used for dewatering, sizing, and wastewater treatment applications. They are suitable for a wide range of industries and processes, including:
Sewage and industrial wastewater treatment
Laundry wash water recovery and filtration
Poultry, fish, fruit, and vegetable wastewater processing
Mineral and ore processing plants
Paper and pulp production
Textile and dyeing wastewater treatment
These screens provide efficient solid–liquid separation and long-lasting performance, making them ideal for both industrial filtration systems and environmental protection applications.
▎Product Video
▎FAQ
Q: How can l pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Are you manufacturer or trading company?
A: We are professional manufacturers. We have the standard workshops and various precision machining equipment. Customers can come to visit the factory, or video to see the factory.
Q: What materials are available for the Wedge Wire Screen?
A: We manufacture screens using high-quality stainless steel grades such as 304, 316, 316L, and 321, ensuring excellent corrosion resistance, strength, and long service life in various industrial environments.
Q: What are the common arc angles for the sieve bend screen?
A: Common arc angles include 45°, 60°, 120°, 270°, and 300°, but we also offer customized angles to match specific equipment or process requirements.
Q: Can you produce customized sizes or designs?
A: Absolutely. We support OEM and custom fabrication based on your drawings, working conditions, or specific equipment models. Our engineers can help design the most suitable screen structure for your application.
