A dewatering screen can look simple. Yet one wrong setting can cut output fast. In any mining screen system, efficiency depends on feed, screen media, vibration, and care. In this article, you will learn what affects screening efficiency and how to improve it.
Screening efficiency is not controlled by one part. It comes from the full working condition. The screen mesh, machine angle, vibration, feed rate, and material all work together.
If one factor is wrong, the full system suffers. For example, a good screen panel may still perform poorly when the feed is too wet or too thick. A strong machine may also fail to deliver clean separation if the aperture is not suitable.
High feed moisture makes separation harder. Water fills the gaps between particles and slows drainage. If the slurry is too thick, material can form a heavy bed on the screen surface.
A stable slurry concentration helps the mining screen work more evenly. Sudden changes can cause overflow, low recovery, or high final moisture.
A narrow particle size range is easier to process. Mixed sizes make screening more complex. Fine particles can block openings, while large particles may create impact wear.
Too many fines also hold water. This can make the final product wetter, even when the dewatering screen runs normally.
Aperture size affects both drainage and separation. Larger openings let water pass faster. Smaller openings retain more solids but may block more easily.
For dewatering, slot design is often more important than simple hole size. The opening must fit the material, moisture level, and target product size.
Open area means the usable space where water can pass. More open area can improve drainage. Yet it also needs enough strength for heavy mining loads.
A screen with poor open area may reduce capacity. A weak screen with too much open area may wear out too fast.
Tip: Before changing to a larger aperture, check whether the real problem is feed rate, moisture, or blocked screen media.
Screen media is the direct contact point between machine and material. It handles impact, abrasion, water flow, and particle movement. This is why the screen surface has a strong effect on dewatering efficiency.
Mining screen mesh can be made for different working conditions. For wet mining, polyurethane screen mesh is often preferred because it offers wear resistance, elasticity, and good anti-clogging performance.
Polyurethane screen mesh is useful for wet ore, coal washing, sand, gravel, and mineral processing. It has elastic properties, so particles are less likely to stick in the openings.
It also resists abrasion in many wet applications. This helps extend service life and reduce replacement frequency.
Mining operations often involve high impact and heavy material flow. A reinforced screen structure helps the panel stay stable under load.
Some polyurethane screens use an embedded support structure. This improves strength while keeping the surface flexible enough for dewatering work.

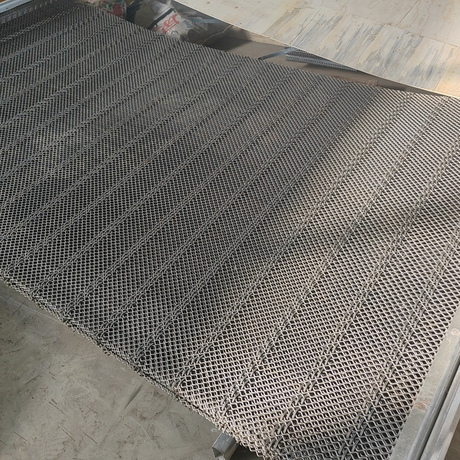

Screen blinding is a common issue in wet screening. Sticky fines, clay, or irregular particles can cover or block the openings.
Anti-clogging screen mesh helps keep the opening area clear. This supports better water removal and more stable throughput.
A standard screen does not fit every site. Material size, moisture, equipment model, and capacity target can all change the right choice.
Custom aperture size, panel thickness, and screen dimensions can help improve performance. They also reduce mismatch between screen media and machine.
Note: A mining screen should be selected by working condition, not only by product name or mesh size.
Material behavior has a direct effect on screening. Two mines can use similar equipment and still get different results because the material is different.
Ore type, particle shape, clay content, and surface texture all matter. Operators should review these points before blaming the machine.
Coal, iron ore, copper ore, gold ore, sand, and gravel do not behave the same way. Some materials are sharper and more abrasive. Others are softer but wetter or stickier.
Abrasive material needs stronger wear resistance. Otherwise, apertures change shape and screening accuracy drops.
Fine particles reduce drainage because they fill gaps in the material bed. Clay makes the problem worse because it sticks to the screen surface.
When fines and clay are high, anti-clogging screen media becomes more important. Stable water flow also becomes harder to maintain.
Round particles move more easily. Flat, flaky, or irregular particles can lie across openings and reduce passage.
These shapes may also increase pegging. This happens when particles become stuck inside the screen openings.
A screen used for dry sizing may not perform well in wet dewatering. Wet material needs better drainage, better anti-blocking ability, and a suitable vibration setup.
This is why mining screen selection should consider both sizing and water removal needs.
Even good screen media needs correct machine settings. Vibration, screen angle, feeding, and fixing quality all affect the result.
When these factors are balanced, material forms a steady bed. Water drains through the screen, while solids move toward discharge.
Vibration helps particles loosen and separate from water. It also helps fines move through the material bed.
If vibration is too weak, water removal is poor. If it is too strong, material may travel too fast or wear the screen surface.
Screen angle affects how long material stays on the screen. A steeper angle increases travel speed. A flatter angle may increase retention time.
For dewatering, material needs enough time to release water. Too little time can lead to high moisture at discharge.
Uneven feeding causes uneven wear. One side may become overloaded, while another side stays underused.
Good feed distribution uses the full screen surface. This improves efficiency and reduces local damage.
Loose panels reduce vibration transfer. They can also move during operation and cause damage.
Proper fixing keeps the mining screen stable. It supports accurate separation and longer service life.
Tip: If one area wears faster than the rest, check feed direction and panel fixing before replacing the full screen set.
Many screening problems are visible only after output drops. Operators may notice wetter material, lower capacity, or more frequent cleaning.
These issues often come from several causes, not one single failure.
Blinding happens when fine or sticky material covers the screen openings. Water cannot pass freely, so drainage capacity falls.
This problem is common in wet material with clay, mud, or high fine content.
Pegging happens when particles lodge inside openings. It reduces open area and makes separation less accurate.
Irregular particles often cause pegging. Wrong aperture size can make it worse.
High final moisture can come from excessive feed moisture, poor vibration, worn screen media, or wrong aperture size.
It can also happen when the material bed is too thick. Water cannot pass through the lower layers fast enough.
Fast wear may come from abrasive ore, high impact, poor installation, or poor material selection.
When openings wear larger, the screen may pass oversized particles. It may also lose dewatering control.
Improvement should start with diagnosis. Changing the screen mesh helps only when the screen is the real cause.
A practical review should include material condition, machine setup, screen media, and maintenance records.
Choose screen media based on ore type, moisture level, particle size, and abrasion. Polyurethane screen mesh is useful when the process involves water, impact, and wear.
For sticky or fine materials, anti-clogging designs may improve stability.
A larger opening is not always better. It may improve drainage but reduce separation accuracy.
A smaller opening may hold more solids but increase blockage risk. The right aperture balances water removal, product quality, and capacity.
Stable feeding improves material bed depth. It also helps the screen work across the full surface.
Avoid sudden feed surges. They can overload the screen and increase final moisture.
Regular checks help find blocked holes, worn openings, loose fixing, and damaged edges early.
Small problems can cause large output losses. Replacing damaged panels on time helps keep efficiency stable.
A suitable supplier should understand the real working condition. Screen media is not only a spare part. It affects output, moisture, downtime, and maintenance cost.
For mining dewatering, customization is often valuable. Material type, equipment size, mesh opening, panel thickness, and fixing method should be reviewed together.
Different sites need different screen designs. A supplier should support custom aperture size, panel size, thickness, and structure.
This helps the screen fit the machine and the material.
A good mining screen should handle abrasion and impact. It should also keep stable openings during use.
For wet work, corrosion resistance and water resistance also matter.
The lowest screen price may not reduce total cost. Short life, frequent cleaning, and downtime can cost more.
A longer-lasting screen can lower maintenance work and keep production more stable.
Dewatering efficiency depends on feed condition, screen media, aperture size, vibration, installation, and maintenance. ShuoQiao provides mining screen mesh and polyurethane dewatering screen solutions built for wet, abrasive, and high-load work. Its customizable structure helps improve drainage, reduce clogging, and support stable mining production.
A: A mining screen removes water from wet ore, coal, sand, or mineral slurry.
A: Common causes include clogging, poor feed control, worn panels, and wrong aperture size.
A: Yes. Polyurethane resists wear, reduces clogging, and works well in wet screening.
A: Use suitable apertures, stable feeding, and anti-clogging screen media.
A: Sometimes. It improves drainage but may reduce separation accuracy.
A: Material, size, structure, customization, and expected service life affect cost.
