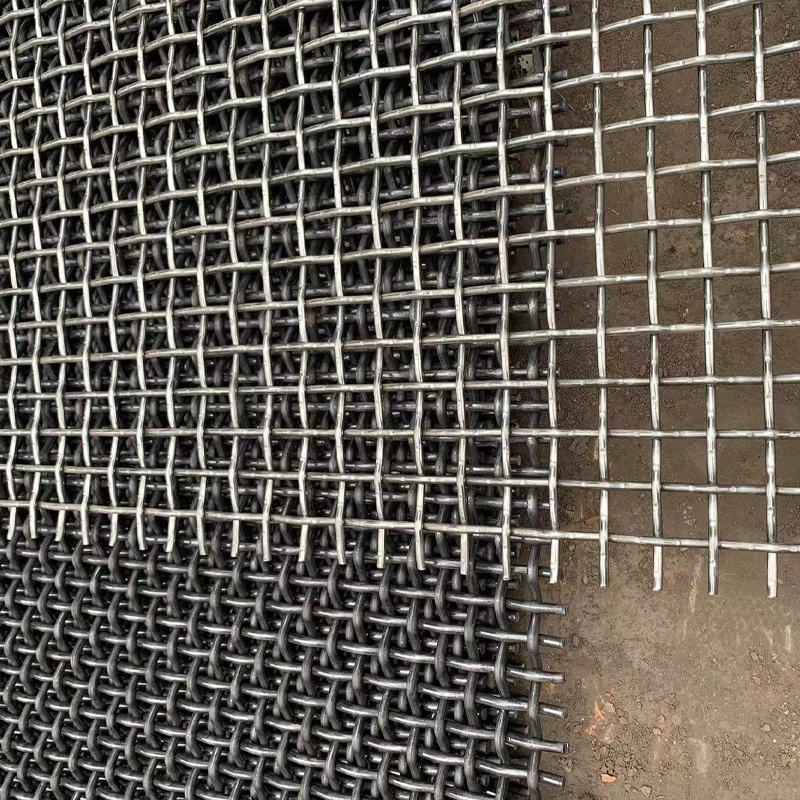

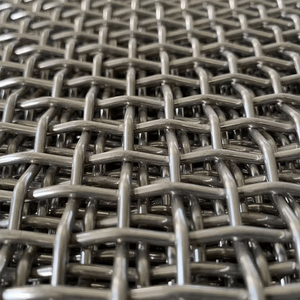

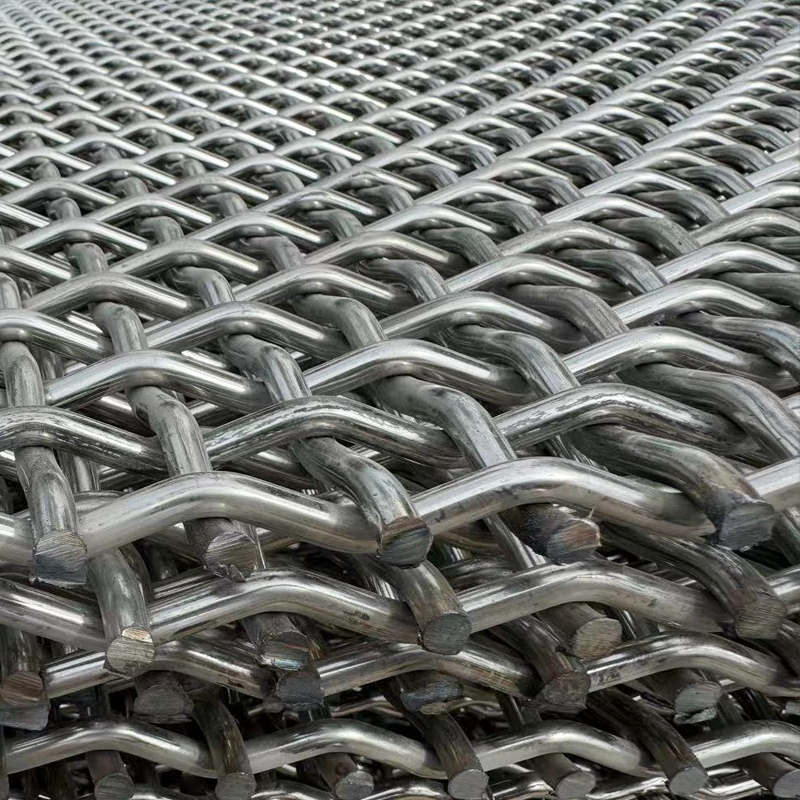

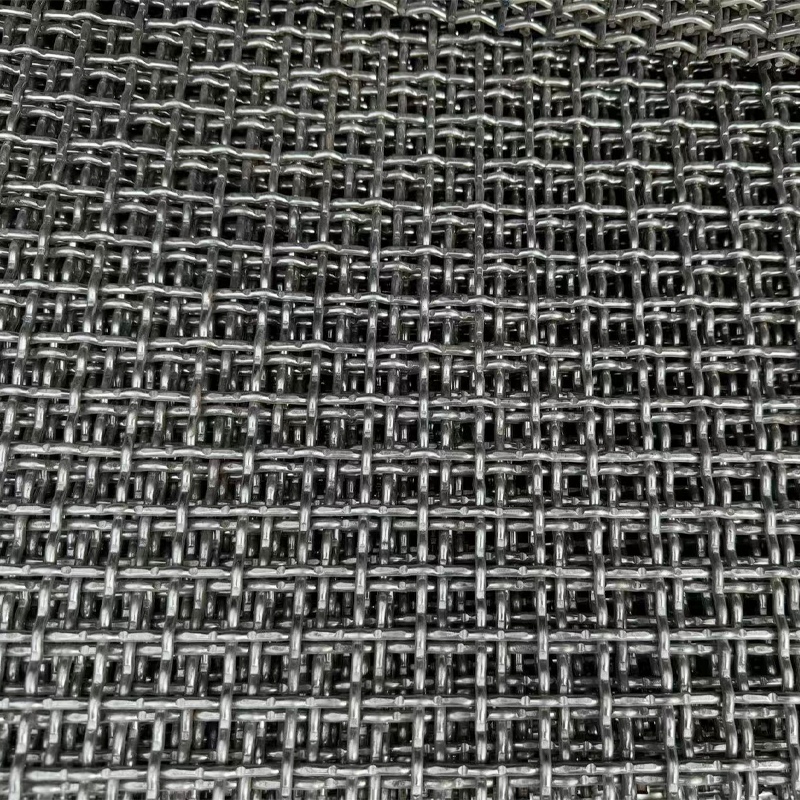

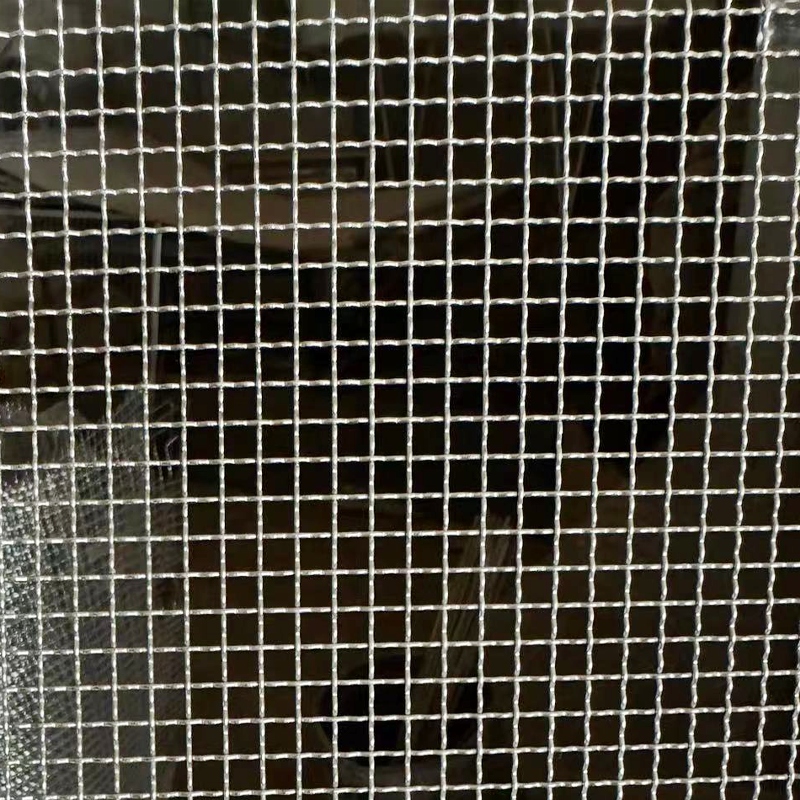

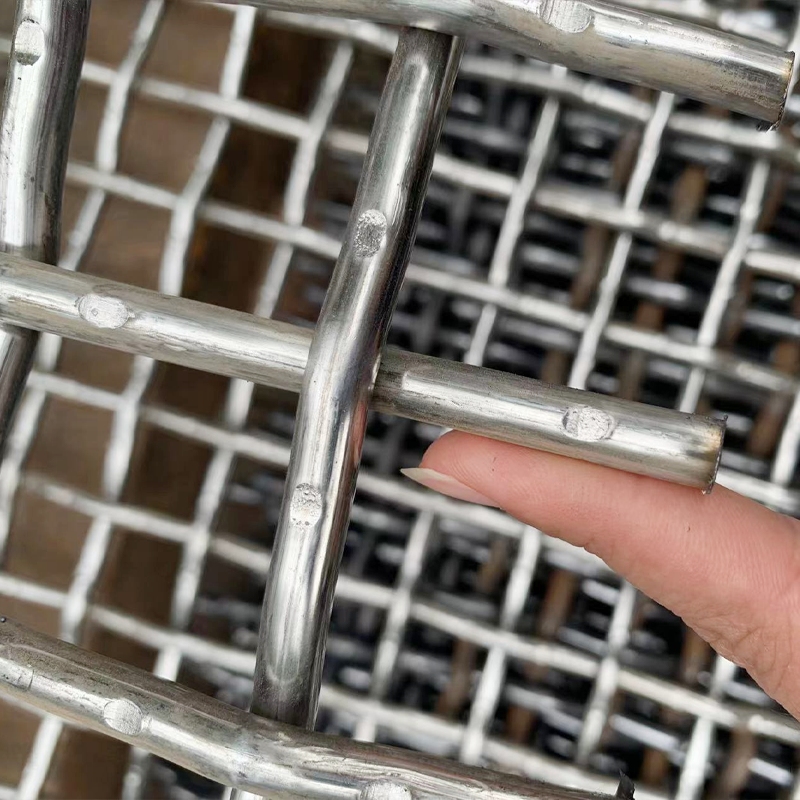

Vibrating Screen Mesh is made by weaving high-quality manganese steel wire with a diameter range of 1.6mm–12mm, using the embedded (Mn65-Q) weaving technique. This structure eliminates raised intersections between warp and weft, resulting in a flat surface, stable structure, and even stress distribution.
With a hardness of HB180–230, the mesh offers excellent plasticity and toughness. Under strong impact and friction, the surface undergoes work hardening, increasing hardness up to HRC60 or higher, which significantly enhances wear resistance while maintaining internal flexibility.
As the working surface wears down, a new wear-resistant layer naturally forms, extending service life to 4–8 times longer than that of conventional screens. Due to its durability and performance, it is widely applied in large-scale coal mining, as well as in vibrating screens, drum screens, electromagnetic high-frequency screens, and asphalt mixing equipment as a protective mesh.
▎Product Advantage
High-Quality Raw Materials: Made from high-strength manganese steel, offering excellent stiffness and load-bearing capacity.
Superior Performance: Outstanding wear resistance and corrosion resistance ensure a long service life even under harsh working conditions.
Excellent Vibration & Impact Resistance: Designed to withstand continuous vibration and heavy impact without deformation.
Customizable Options: With our own R&D and manufacturing facility, we support full customization of wire diameter, aperture, size, color, and mesh curvature to meet different application requirements.
▎Technical Parameters
| Specification Of Crimped Screen Mesh | ||
| Product Name | Crimped Vibrating Screen Mesh, Also Known as Mine Screen Mesh, Sand Screen Mesh, Quarry Screen Mesh, Ore Screen Mesh, etc | |
 Materials | 65 Mn/45#/50#/55# Steel Wire, Galvanized Steel Wire or Stainless Steel Wire, Mild steel/Low Carbon Steel, Carbon Iron Wire | |
| Surface Treatment | Anti Rust Oil Painted | |
| Wire Diameter | 0.8mm-12.7mm, As Your Requested | |

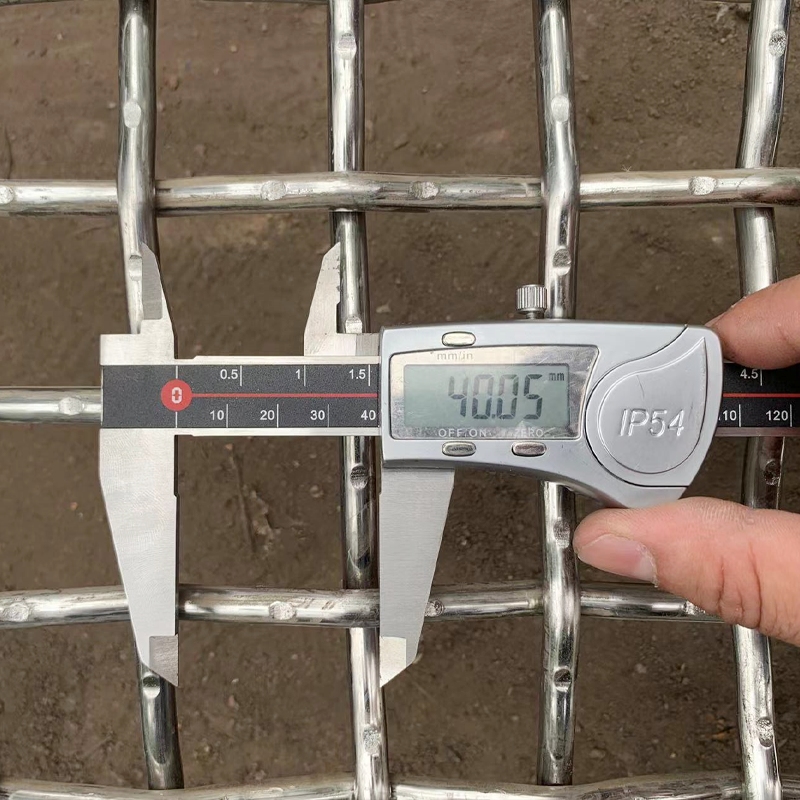

| Mesh Hole | 2mm-100mm, As Your Requested, Square or Rectangular or Slot | |
| Width | 0.5m-1.5m, As Your Requested | |
| Length | 1m-30m, As Your Requestd | |
| Angle | 30 degrees, 45 degrees, 60 degrees | |
| Hook Type | C or U hook for 30°-180° | |
| Edge Preparation | Plain, Bent, Reinforced Shroud, Welded Shroud, Bolt Shroud | |
▎Product Uses
Vibrating screen mesh is widely used in mining, quarrying, coal processing, stone crushing, iron and steel production, construction, cement manufacturing, petrochemical plants, construction machinery, power generation, and the paper & pulp industry. It serves as a key component in screening, filtering, and separating materials under high-load and high-impact conditions.
▎Product Video
▎FAQ
Q: How long does the Vibrating Screen Mesh last compared to a regular screen?
A: Due to its work-hardening surface, the mesh can form a new wear-resistant layer as it wears down, achieving a lifespan 4–8 times longer than standard screen meshes.
Q: What industries commonly use Vibrating Screen Mesh?
A: It is widely used in mining, quarrying, coal processing, stone crushing, cement production, steel manufacturing, petrochemical plants, power stations, and the paper & pulp industry, where high-strength and wear-resistant screening is required.
Q: What surface treatment options are available?
A: The mesh can be treated with anti-rust oil painting or customized surface finishes to enhance corrosion resistance, ensuring a long service life in different environmental conditions.
