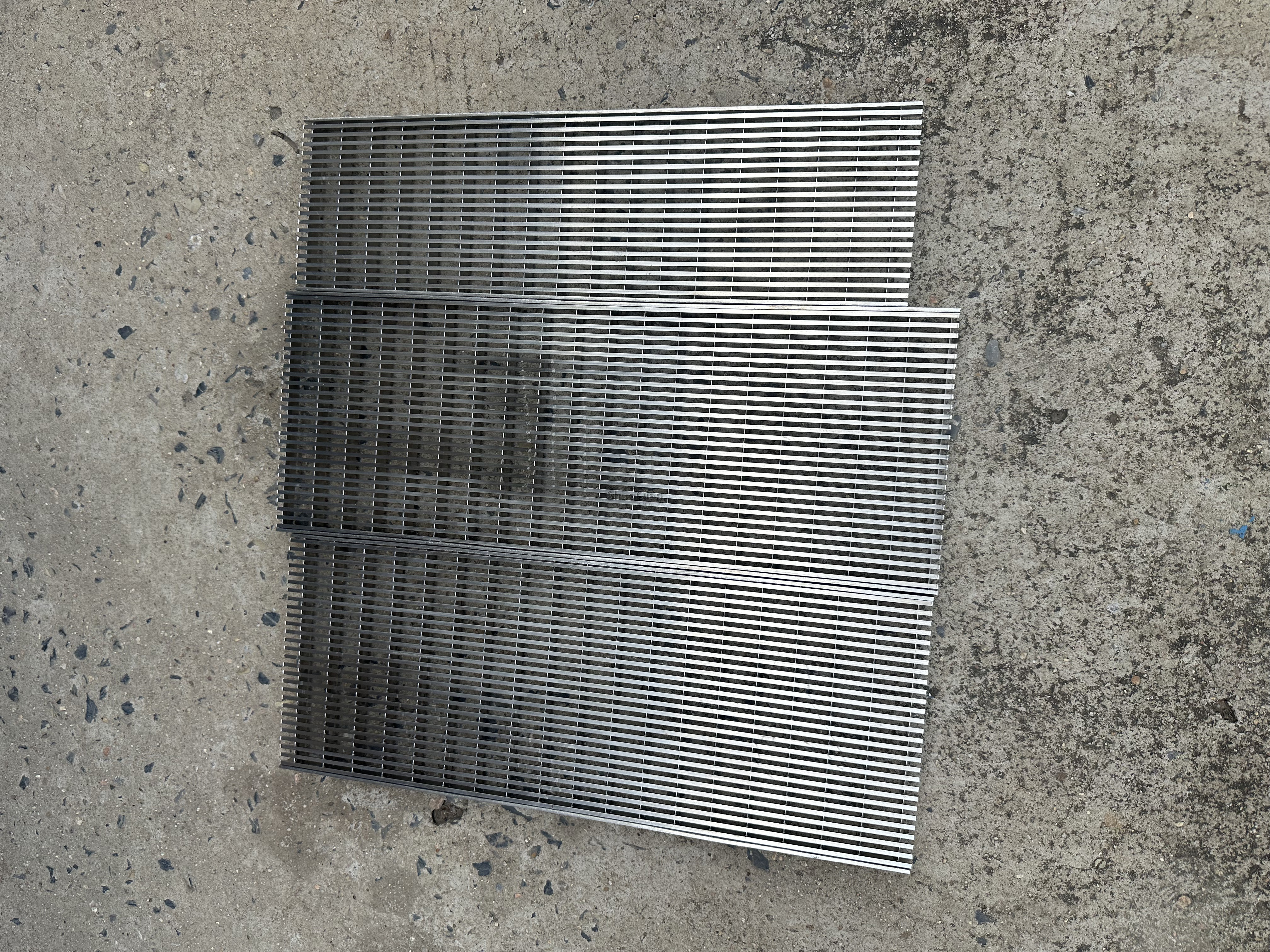

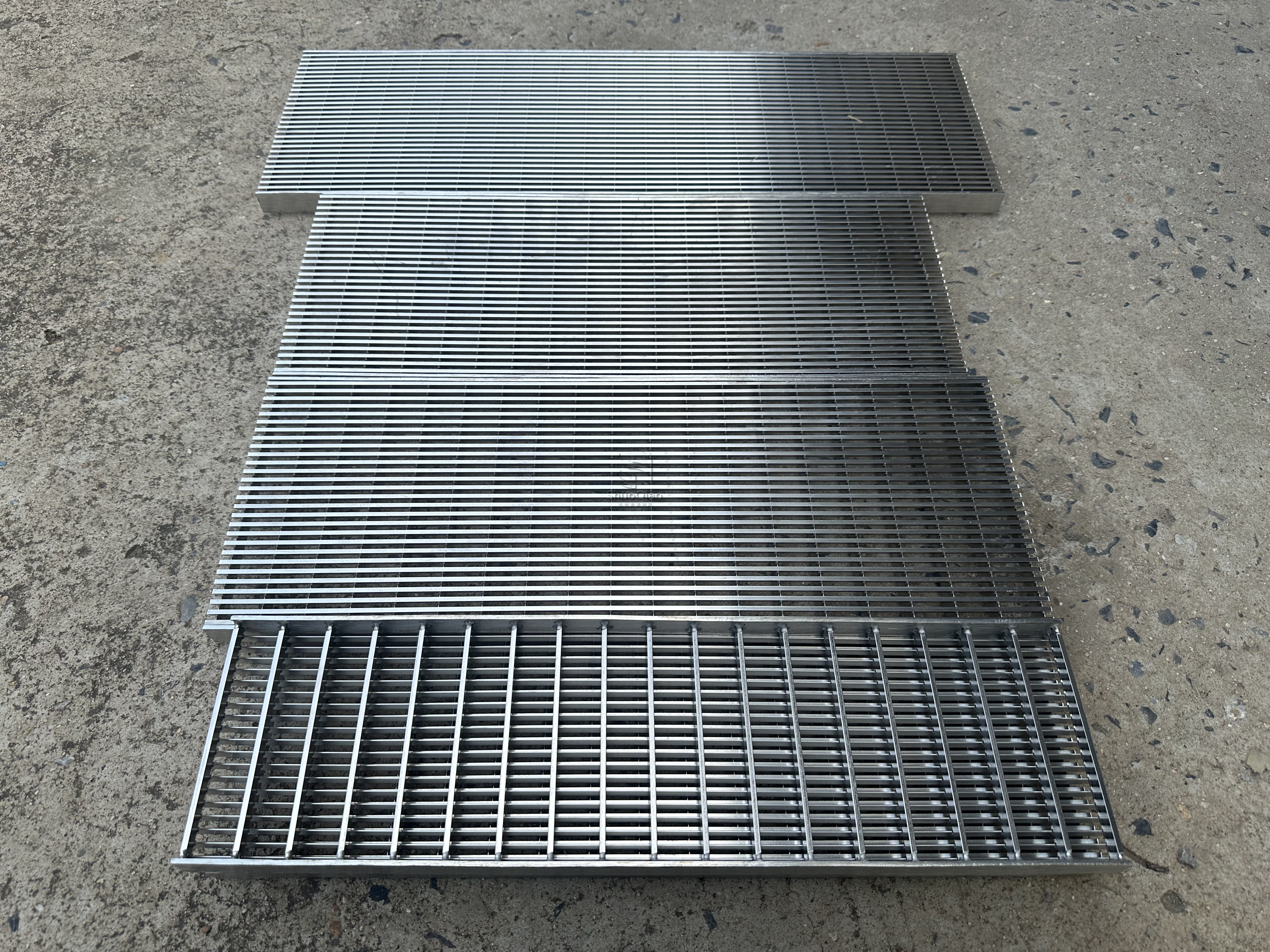

Stainless Steel Wedge Wire Linear Drain Grate

This stainless steel wedge wire linear drain grate is tailor-made for linear trench drainage. Precision welded V-wire structure provides efficient water flow and heel protection, ideal for commercial and landscape construction projects.

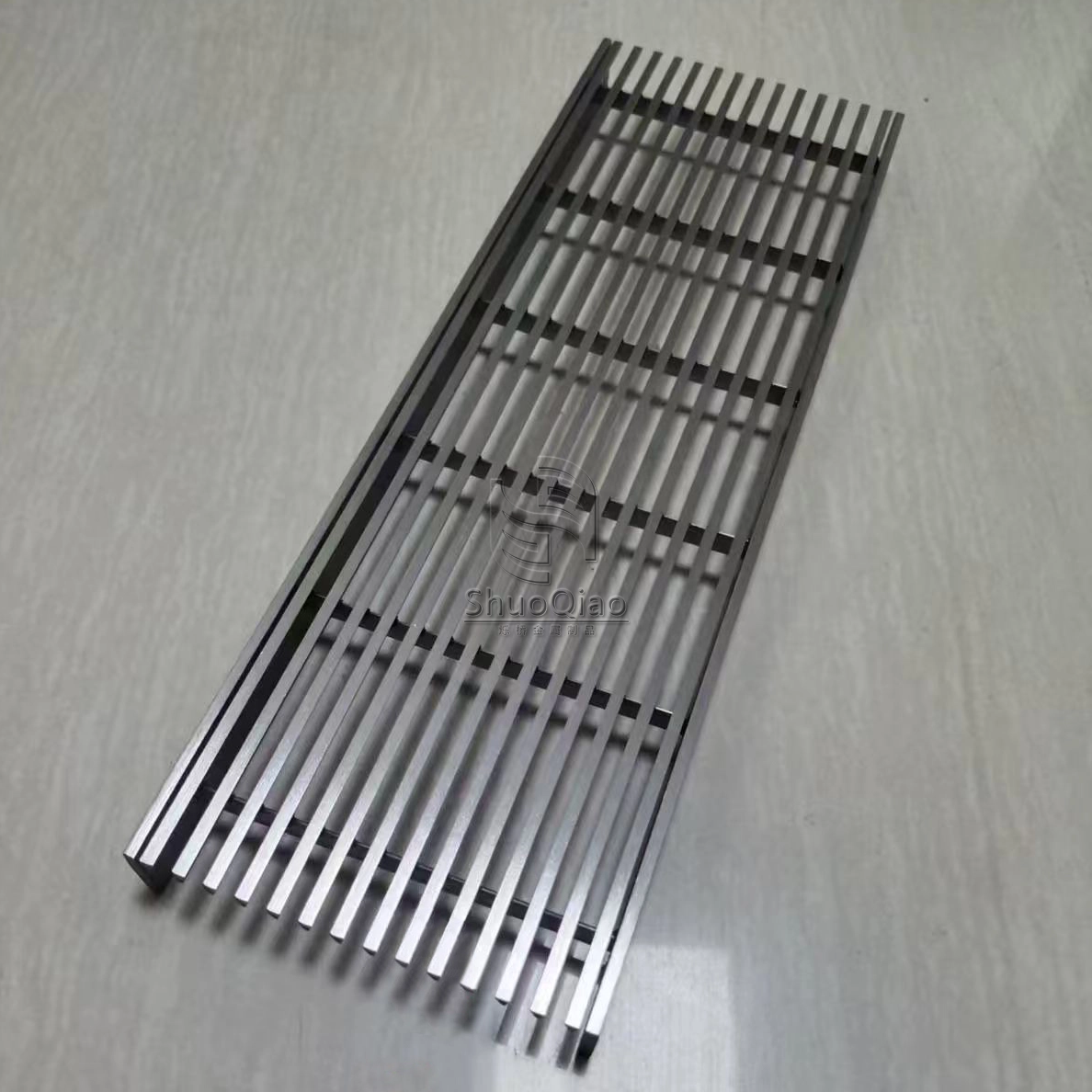

This heel guard trench drain cover is constructed from stainless steel wedge wire and transverse support rods via resistance welding. Consistent narrow slots avoid high heels and debris falling into trenches, while the wedge shape delivers self-cleaning performance to resist dirt buildup.

We supply standard sizes and custom specifications. Optional U-shaped installation frames can be matched for quick on-site installation. Two material options: SS304 for regular environments, SS316L for coastal, saltwater and high-corrosion conditions.

Product Specifications

• Material: SS304 / SS316L Stainless Steel

• Surface: Brushed / Electropolished

• Custom length, width, height and slot opening

• Optional supporting frame and end caps

Common Application Fields

• Swimming pool overflow drainage systems

• Hotels, shopping malls, resorts pedestrian zones

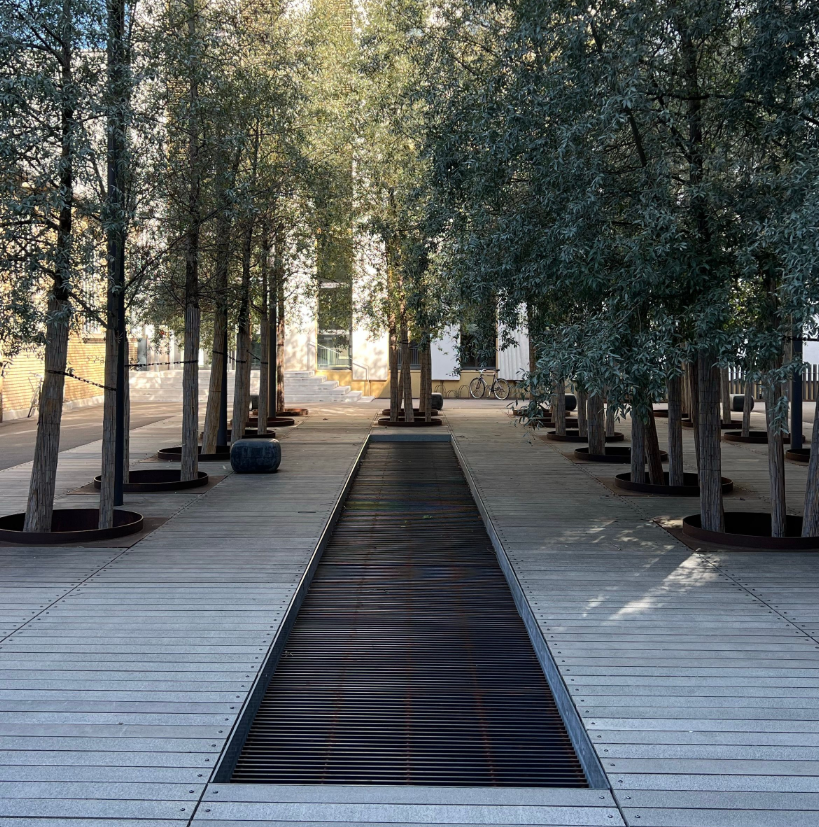

• Urban parks, outdoor plazas and terrace landscape drainage

• Coastal projects, marinas and saltwater environment drainage

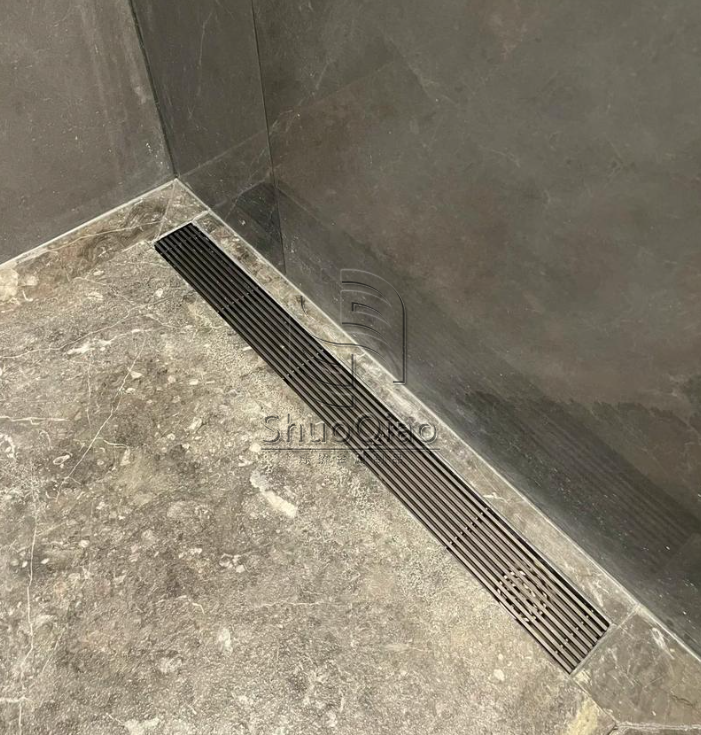

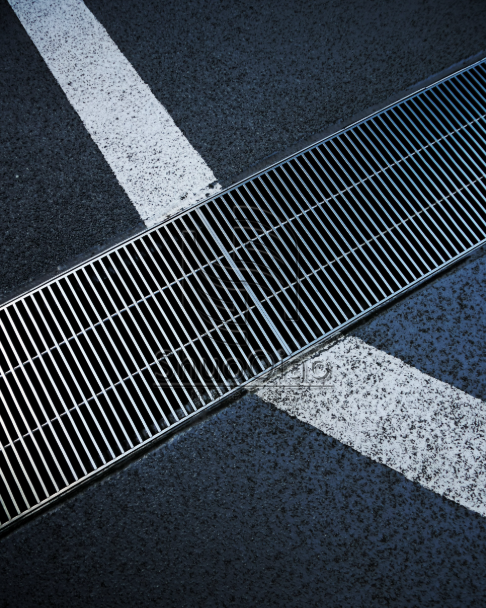

• Commercial buildings, parking garages and public restrooms

Series Highlights

• Heel guard safety slot, prevents high heels and small wheels from getting stuck

• Self-cleaning structure to reduce blockages

• Anti-corrosion stainless steel for indoor & outdoor wet locations

• Uniform gap, flat surface with modern architectural aesthetic

• Flexible customization for all project sizes

We provide complete drainage matching solutions. Send your project requirements to get suitable options, drawings and quotations.
