Choosing the wrong mining screen can slow a whole plant. It can raise downtime, clogging, and replacement cost. So which option fits better: polyurethane frame screen or wedge wire screen? In this article, we compare both by structure, wear, drainage, accuracy, maintenance, and real screening use.
● A polyurethane frame mining screen is usually better for high-impact vibrating screening, wet material, noise control, and abrasive aggregate or ore.
● A wedge wire mining screen is often stronger for precise slot control, fast drainage, solid-liquid separation, and stable dewatering.
● Polyurethane works well when vibration, impact, and blinding are major problems on the screen deck.
● Wedge wire works well when open area, smooth flow, and accurate slots matter more than flexible movement.
● The right mining screen depends on feed size, moisture, abrasiveness, required separation size, and equipment design.
● Initial price is only one part of the decision. Plants should also compare wear life, cleaning time, downtime, replacement labor, and screening stability.
● In some operations, both screens may be used in different stages, instead of choosing only one type.
A polyurethane frame screen and a wedge wire mining screen can both separate materials. But they do not work in the same way. A polyurethane screen uses an elastic screening surface. It can absorb impact, reduce vibration stress, and help material bounce away from the apertures. This makes it useful for vibrating screens handling stone, coal, ore, and wet aggregate.

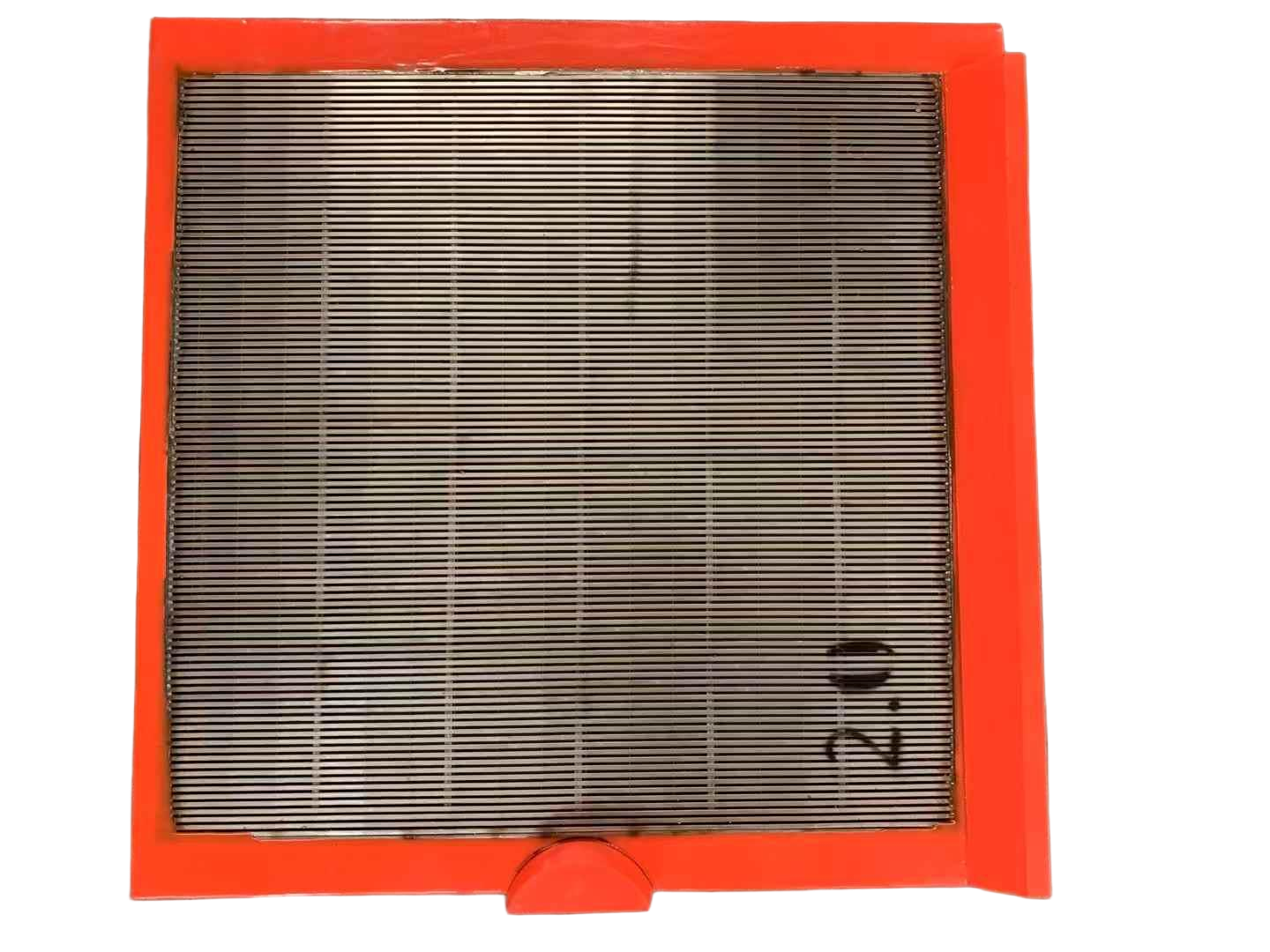

A wedge wire screen uses shaped metal wires welded to support rods. The surface forms continuous slot openings. These slots allow liquid to pass quickly while holding solids back. This makes it useful for dewatering, filtration, slurry separation, and accurate screening where flow control is important.
The core question is simple. Do you need flexibility and impact resistance, or do you need rigid precision and fast drainage? That answer should guide the mining screen choice.
Polyurethane is elastic. It can bend slightly during vibration. This movement helps reduce impact damage and may lower noise on the screen deck. A frame or reinforced structure gives it support.
Wedge wire is rigid. It depends on metal strength, welded support rods, and slot geometry. It is not designed to flex like PU. Instead, it gives stable openings and strong support under pressure.
Polyurethane screens use molded or formed apertures. These can be customized for different particle sizes. They are practical for sizing, scalping, and general vibrating screening.
Wedge wire screens use continuous slots. These slots are useful when the process needs fast liquid passage and accurate solid retention. They also help create smooth material flow across the surface.
Polyurethane performs well in impact-heavy conditions. It can resist abrasion from stone, ore, sand, and coal. It also reduces metal-to-material contact noise.
Wedge wire performs well when the material flow is more controlled. It resists deformation through welded metal support. But sharp, heavy impact may damage metal slots if the screen is not selected correctly.
Polyurethane can help reduce blinding because it moves during vibration. Wet or irregular particles may release more easily from the opening.
Wedge wire reduces clogging in another way. Its smooth surface and slot shape allow liquid and fine particles to flow away. It is especially useful for dewatering and liquid-solid separation.
Wedge wire has a clear advantage in drainage. Its continuous slot design gives water more direct flow paths. This is why it is often selected for dewatering screens, sieve bends, baskets, and filtration systems.
Polyurethane can still work in wet screening. But when drainage speed is the main target, wedge wire often gives a cleaner process advantage.
Polyurethane absorbs more vibration energy. This can make the screen deck quieter and gentler on equipment.
Wedge wire is more rigid. It gives stable separation, but it may produce more noise under heavy vibration. It should be matched carefully to the machine and load.
Tip: Before comparing prices, define the main problem: wear, clogging, drainage, accuracy, or downtime.
A polyurethane frame screen is a strong option when the screen deck handles heavy vibration and impact. It suits plants that process crushed stone, coal, mineral ore, gravel, and wet aggregate. These materials can strike the screen surface hard. A flexible PU screen helps absorb that energy.
It is also helpful when wet or sticky material causes blinding. During vibration, the elastic surface moves slightly. This movement can help stuck particles release from the aperture. That means fewer stops for cleaning and better screening continuity.
In many plants, noise also matters. A metal screen may create sharper sound under repeated impact. Polyurethane can reduce that harsh contact noise. It can also protect the screen deck from some vibration stress.
Maintenance is another reason to choose polyurethane. Many PU screen panels are made for easier replacement. When a screen section wears out, workers can replace the affected panel instead of changing a large full surface. This can reduce downtime in continuous screening lines.
Polyurethane frame screens are often suitable for:
● Quarry screening where crushed stone causes strong impact.
● Coal preparation where wet material may blind openings.
● Aggregate washing where abrasion and water appear together.
● Mineral classification where vibration and wear are constant.
● Sand and gravel screening where manual cleaning should be reduced.
Note: Polyurethane is not only a “soft” screen material. In the right structure, it can be a durable mining screen choice for demanding vibration.
A wedge wire mining screen is the better choice when slot precision and drainage are the top priorities. It is built from shaped wires welded to support rods. This structure creates accurate, continuous openings. The result is stable separation and strong flow capacity.
This type works especially well in dewatering. When water must leave quickly, wedge wire gives clear flow paths. It can help separate solids from liquid in coal washing, mineral processing, slurry handling, tailings treatment, and similar processes.
Wedge wire also offers high structural stability. It can handle load, pressure, and steady flow when correctly specified. Flat panels, curved sieve bends, baskets, and tube forms can be made for different equipment designs.
The smooth surface is another advantage. It helps material move across the screen more evenly. It also reduces areas where particles may catch. For fine wet material, this can improve working stability.
Wedge wire mining screens are often suitable for:
● Dewatering where water removal speed is important.
● Solid-liquid separation in slurry or tailings processes.
● Coal washing where fine material needs controlled drainage.
● Sieve bend systems where curved flow improves separation.
● Filtration systems where slot accuracy affects final quality.
A practical mining screen choice should start with the job. A coarse sizing deck does not need the same screen as a dewatering stage. A wet coal plant does not face the same problem as a dry aggregate line.
For dry sizing and coarse separation, polyurethane often makes sense. It handles impact well, and it works with strong vibration. If material is large, sharp, and heavy, screen life may improve when the surface can absorb shock.
For wet screening and sand washing, the decision is more balanced. If blinding is the main issue, polyurethane may help. If drainage is the main issue, wedge wire may be better. The amount of water, clay, fines, and sticky material should decide the direction.
For coal washing and mineral classification, both can be useful. Polyurethane may fit vibrating decks that handle raw feed and high wear. Wedge wire may fit dewatering areas where water must pass quickly through narrow slots.
For tailings and slurry dewatering, wedge wire usually has an advantage. Its slot structure supports liquid flow and solid retention. But if the feed includes strong abrasion or sudden impact, the full equipment layout should be reviewed first.
Tip: Do not choose one screen type for every deck. Different process stages may need different screen media.
Start with the material. Is it dry or wet? Is it sharp, sticky, heavy, or fine? Does it contain clay or high moisture? These details affect whether flexibility or drainage matters more.
Next, define the screening goal. If the goal is coarse sizing, scalping, or impact-heavy separation, polyurethane may be stronger. If the goal is dewatering, filtration, or slot-controlled separation, wedge wire may be more suitable.
Then check the equipment. Confirm screen deck size, installation method, frame structure, vibration intensity, feed direction, and available clearance. A strong screen will still fail early if it does not fit the machine correctly.
Finally, compare long-term operating cost. Ask these questions before ordering:
● How often is the current screen replaced?
● What causes failure most often?
● How much time is spent cleaning blocked openings?
● Does the process lose product quality from poor separation?
● Is drainage speed limiting plant capacity?
● Can the screen be customized to match the existing deck?
Note: The best mining screen is not the one with the strongest material alone. It is the one that matches the process problem.
Choosing between polyurethane and wedge wire depends on the screening task. Polyurethane helps with impact, wear, vibration, and blinding. Wedge wire supports precise slots, fast drainage, and stable separation. ShuoQiao provides mining screen products for quarrying, coal washing, aggregate processing, and mineral classification, helping users improve screening stability, reduce downtime, and match products to real working conditions.
A: Polyurethane helps blinding; wedge wire improves drainage in a mining screen.
A: It gives precise slots, fast drainage, and stable separation.
A: A mining screen with PU suits impact, vibration, and wet screening.
A: It depends on wear life, downtime, and cleaning time.
A: Yes. One mining screen type may fit sizing, another may fit dewatering.
A: Wrong aperture, poor fastening, high impact, or mismatched material.
