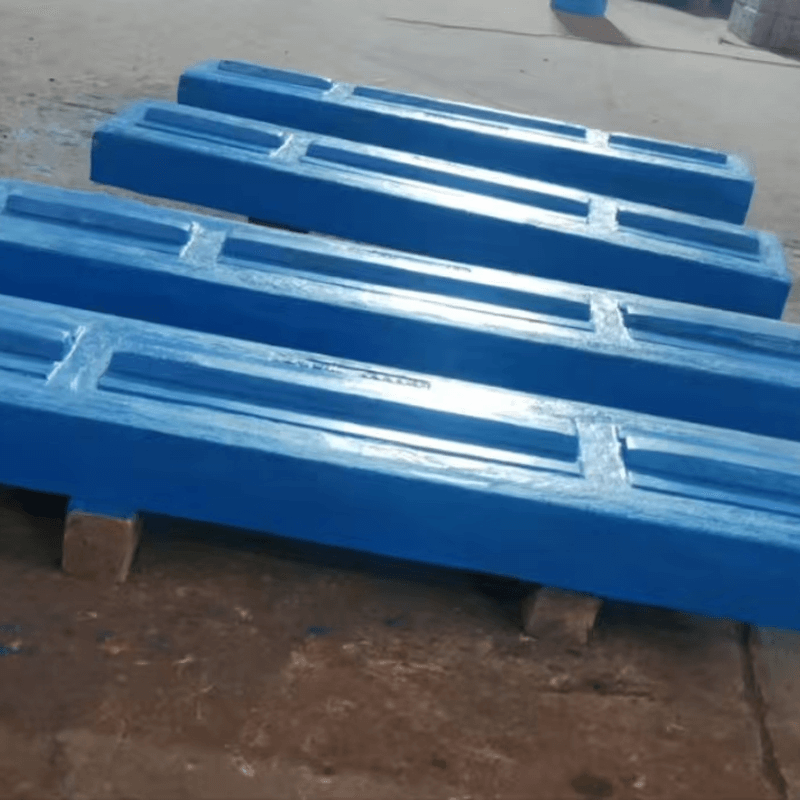

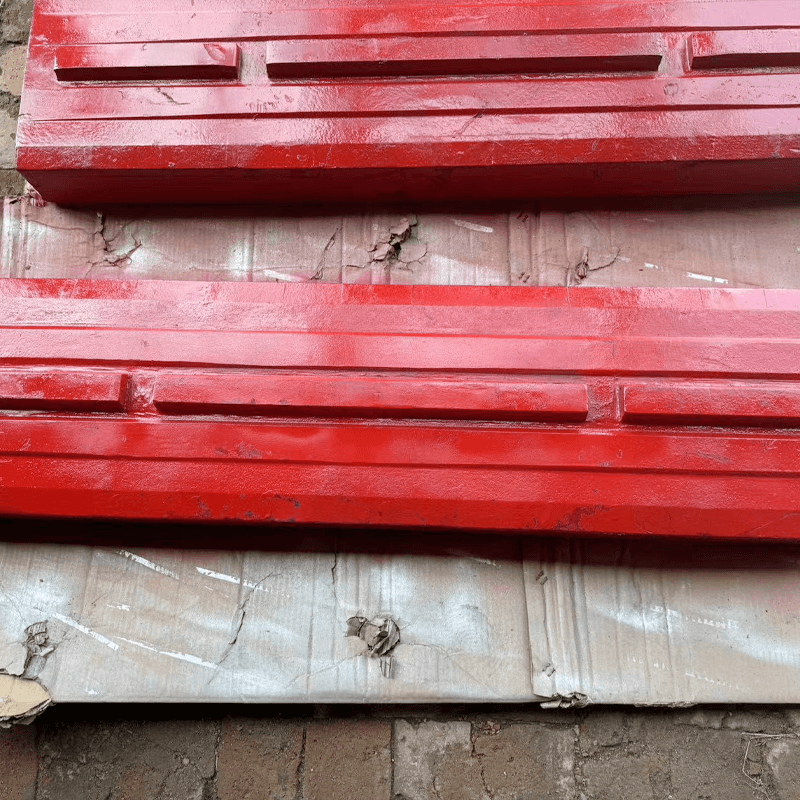

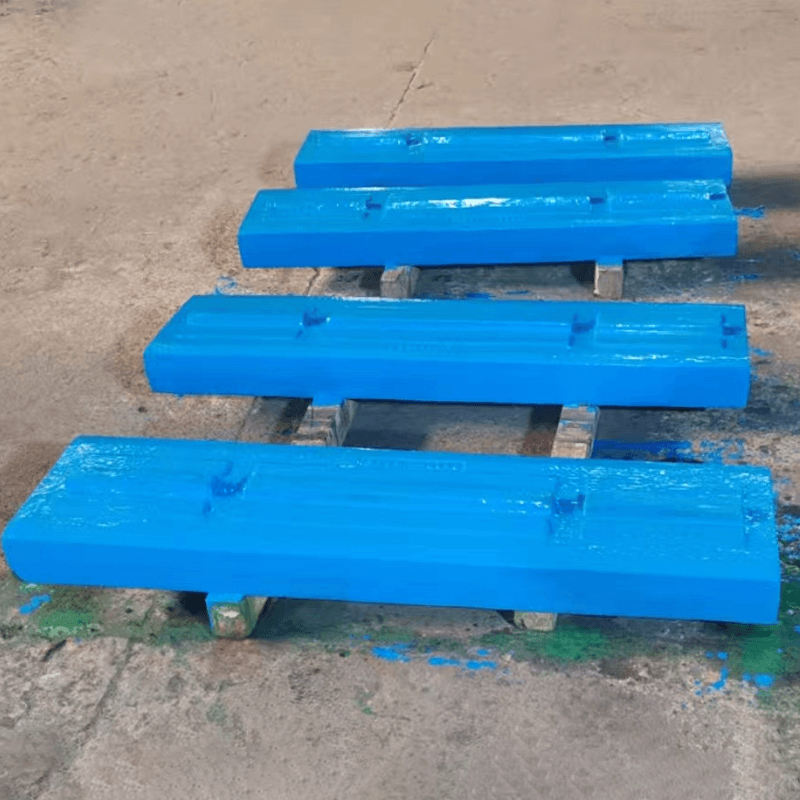

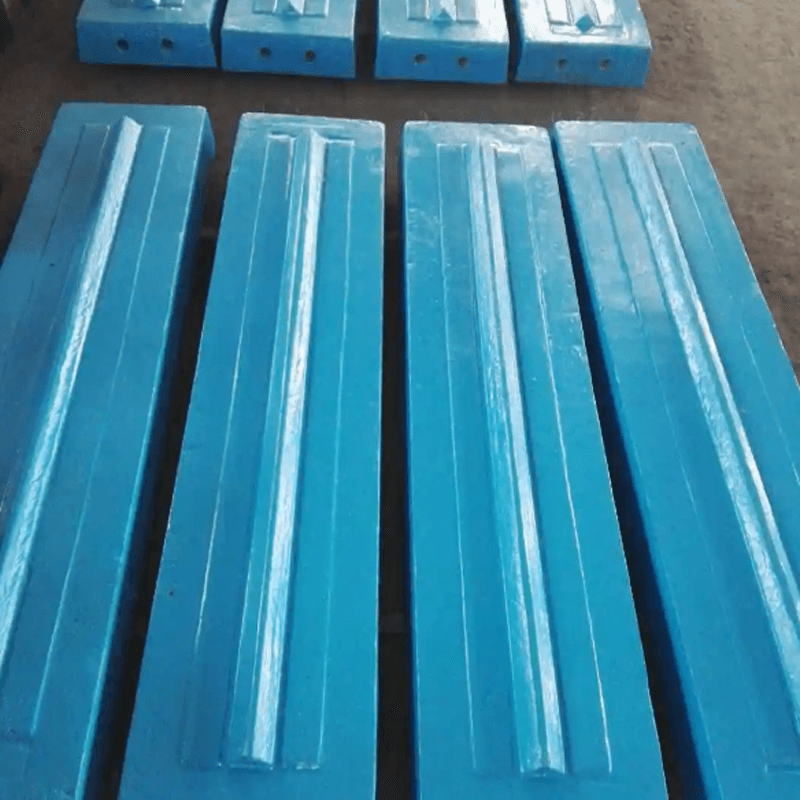

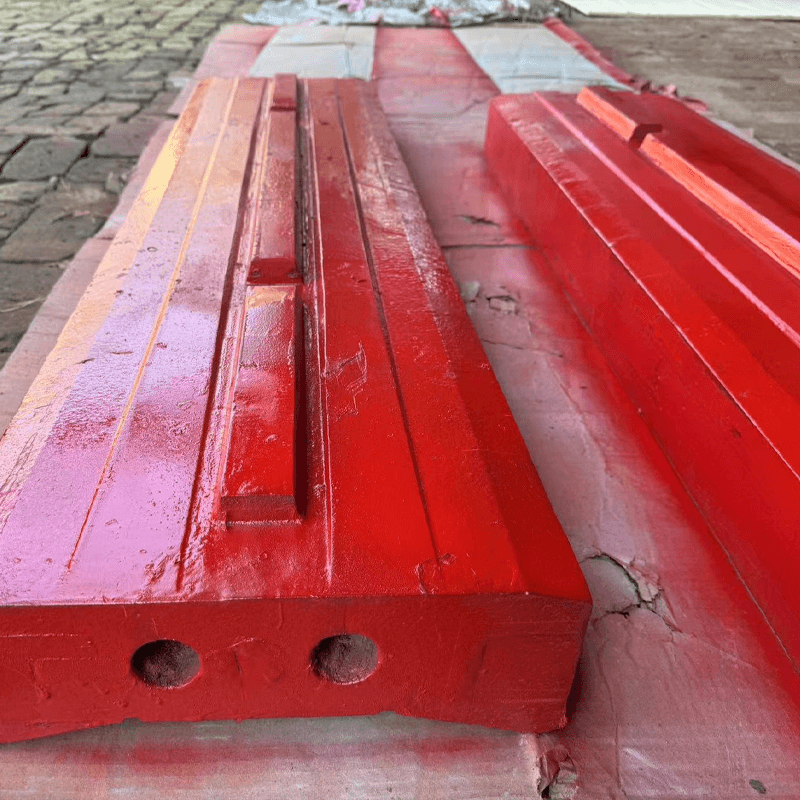

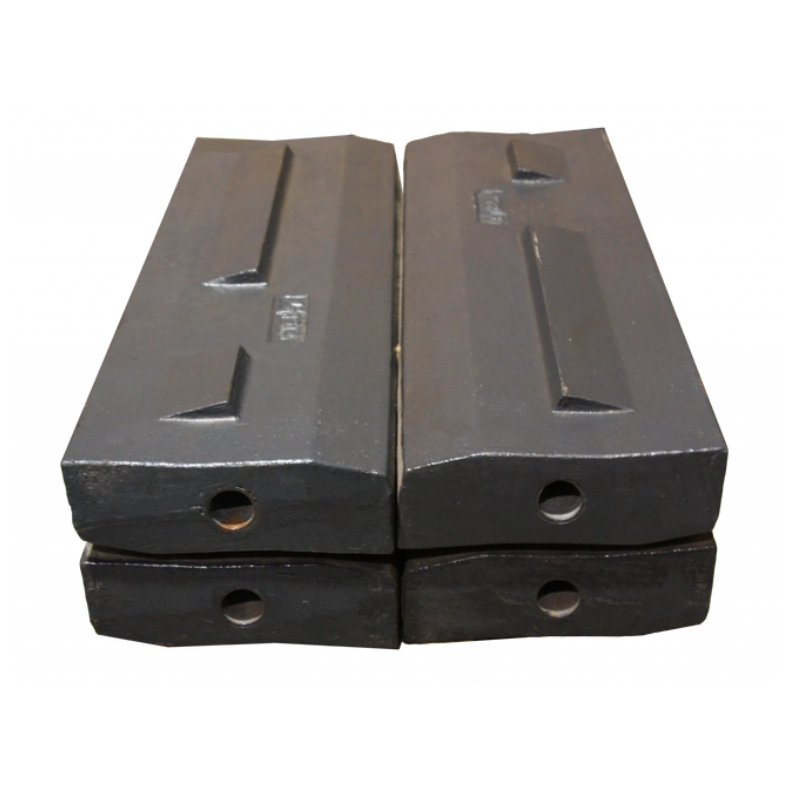

The plate hammer is the core wear-resistant component of an impact crusher. Mounted on the rotor, it crushes materials such as ore, rock, and concrete blocks through high-speed impact and collision within the crushing chamber. Its performance directly determines the crushing efficiency, product particle size, and operating cost of the crusher.
The counterattack plate hammer is made from high-chromium alloy material, offering superior performance compared with traditional high-manganese steel hammers. It features high hardness, fine discharge, and excellent wear resistance. The high-hardness martensitic matrix within the hammer provides strong support for carbide particles, preventing them from detaching from the wear surface during operation and ensuring long-lasting durability and outstanding wear resistance.
▎Product Advantage
Enhanced Alloy Composition
Based on the original high-chromium hammer head, we go beyond conventional alloy production by incorporating rare and precious elements. This enables superior resistance to severe abrasive wear, ensuring reliable performance in demanding conditions.
Optimized Chemical Formula
Through precise optimization of chemical composition and advanced alloy modification, elements such as niobium and vanadium are added to significantly strengthen the matrix structure, improving toughness and durability.
Advanced Casting Technology
Utilizing vacuum casting and directional solidification technology, we achieve refined grain structures and fundamentally eliminate casting defects, resulting in a dense and uniform product.
Superior Comprehensive Performance
Compared with similar products, our hammer heads feature excellent overall performance, high reliability, outstanding wear resistance, and competitive pricing.
Strict Quality Control
Every batch undergoes rigorous inspection by our laboratory and quality control departments before shipment to guarantee consistent quality and performance.
Competitive Value
We provide top-quality products at reasonable prices, delivering exceptional value for customers seeking both performance and affordability.
Long Service Life
With strong wear resistance and extended lifespan, our hammer heads perform steadily even in harsh environments and under severe abrasion.
Professional Manufacturing Expertise
Backed by many years of experience in casting and forging, our factory ensures high precision, stable quality, and continuous innovation in production technology.
▎Technical Parameters
| Product Name | Crusher Parts- Plate Hammer / Blow Bar | |
| Compatible Models | PCZ1308, PCZ1410, PCZ1512, PCZ1610, PCZ1612, PCZ1615, PCZ1620, PCZ1716, PCZ1720, PCZ1815, PCZ1820, PCZ1920, PCZ2020, PCHZ1016, PCZ2122, PCZ2125, PCZ2225, PCZ3032, PCX 0706, PCX 0808, PCX 0910, PCX 1012, PCX 1213, PCX 1216, PCX 1220, PCX 1622 Produce By Original Drawing, Ensure the Quality, OEM Price | |
 Materials | Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn22Cr2Mo. Alloy steel | |
| Casting Technology | Sand Casting | |
| Processing Method | Tempering and Quenching | |
| Quality Assessment | Flaw Detector and Hardness Testing | |
| Application Scenarios | Quarry, Cement Plant, Coal-Fired Power Plant, Metallurgy | |
▎Product Uses
The hammer is widely applied in brick factories, stone plants, and other building material industries, suitable for the fine crushing of shale, coal gangue, river pebbles, quartz stone, and various other minerals. The crushed materials feature uniform particle size and fine granularity, earning wide recognition and trust from customers for their consistent quality and performance.
▎Product Video
▎FAQ
Q: How can I pay for my order?
A: We accept T/T (bank transfer), Western Union, and Alibaba Online Payment for your convenience.
Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer equipped with standardized workshops and advanced precision machining equipment. You are welcome to visit our factory in person or request a video tour to learn more about our production capabilities.
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is 1 piece. As a direct factory, we can also customize single-piece orders according to your specific requirements.
Q: Can I customize the product?
A: Absolutely. Our experienced technical team can custom-design and manufacture products based on your drawings or specific requirements. We can also assist in creating detailed design drawings to meet your application needs.
Q: Why should I choose your company over other suppliers?
A:
① We support OEM & ODM services.
② We provide professional design and drawing assistance.
③ We have our own R&D team to ensure continuous innovation and reliable quality.
