VSM-1-4
SHUOQIAO

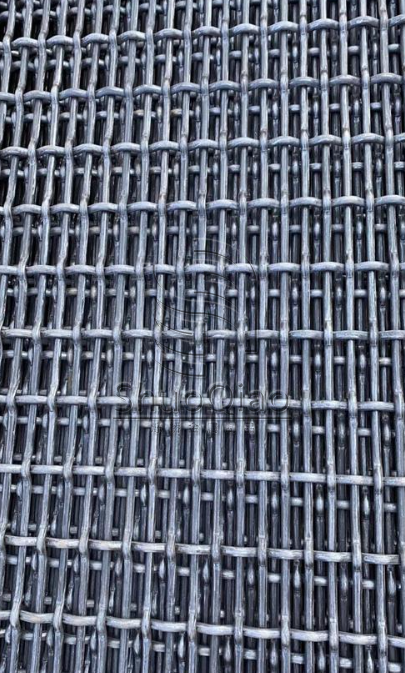

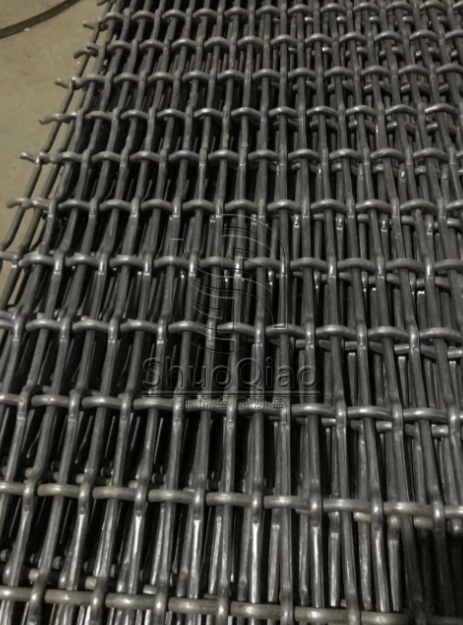

Our 65Mn Lock Crimped Vibrating Screen Mesh with Long Slot Rectangular Aperture belongs to lock crimp woven mining screening media, but differs from diamond-opening lock crimp mesh. It features elongated rectangular long-slot openings. Thanks to the long slot design, rock particles can pass smoothly and greatly reduce material blinding/blocking, which is its biggest advantage compared with square mesh. Lock crimp interlocking weave firmly locks every wire intersection point, so the long slot shape remains stable under long-term high-frequency vibration, avoiding mesh deformation and hole shifting.
Manufactured from high tensile 65Mn high manganese steel, this screen cloth delivers outstanding impact resistance and abrasion resistance. It is widely applied for dry screening of crushed stone, aggregate, coal and gravel in quarry, stone crushing plant and coal processing plant. Custom specifications and hooked screen panels for vibrating screen deck mounting are available.
✅ Material: 65Mn high manganese steel (high tensile strength, excellent abrasion & impact resistance)
✅ Weave Type: Lock Crimp interlocking woven
✅ Mesh Opening: Long Slot / Rectangular Aperture (custom slot width & length on request)
✅ Core Advantage: Anti-blinding / Anti-clogging, long slot reduces stone wedging & blockage
✅ Wire Diameter: Customizable (2.0mm, 2.5mm,3.0mm,3.5mm,4.0mm optional)
✅ Custom Options: Cut panel, full roll, hooked edge for easy installation on vibrating screen machine
✅ Working Condition: Heavy-duty dry screening of rock, gravel, coal and aggregates
Quarry & stone crusher plant: crushed rock, gravel size classification
Aggregate processing plant: sand & aggregate separation
Coal preparation plant: raw coal sizing screening
Construction waste recycling
Any heavy industrial particle classification where anti-clogging is required
| Item | Specification |
|---|---|
| Product Name | 65Mn Lock Crimped Vibrating Screen Mesh, Long Slot Rectangular Aperture |
| Material | 65Mn High Manganese Steel (SS304/SS316 optional for corrosion environment) |
| Wire Diameter | Customizable |
| Mesh Opening | Long Slot / Rectangular Aperture, custom size |
| Weave | Lock Crimp Interlocking Weave |
| Product Form | Flat panel / roll, hooked edge available |
| Available Service | Cutting, hook bending, custom size |
| Core Performance | Wear-resistant, anti-deformation, anti-blinding / anti-clogging |
| Working Condition | Dry heavy-duty screening for stone, aggregate, coal |
Sample pieces available for quality verification, buyer undertakes shipping cost
Fully customizable: slot dimension, wire gauge, panel size, hook edge
Bulk order production for quarry and coal processing large projects
Trade terms: FOB, CFR, CIF acceptable
Packing: Waterproof wrapping + steel pallet for sea shipment
Q: What is the difference between long slot lock crimp mesh and diamond lock crimp mesh?
A: Long slot version has rectangular elongated openings. Its long aperture helps prevent stone particles from getting stuck (anti-blinding). Diamond lock crimp has diamond-shaped holes, more suitable for general stone grading. Both adopt lock crimp interlocking weave.
Q: Can I customize the long slot size and wire diameter?
A: Yes, fully customizable. Send your required slot dimension, wire diameter or technical drawing for quotation.
Q: Can you add hooked edges for installation on vibrating screen?
A: Yes, we can bend hook edges on both sides for direct mounting on vibrating screen decks.
Q: What material alternatives are available?
A: Standard grade is 65Mn manganese steel for quarry, coal and aggregate screening. Stainless steel 304/316 is available for corrosive environments.
Q: Are samples available?
A: Small test samples are available. Customer covers courier freight
